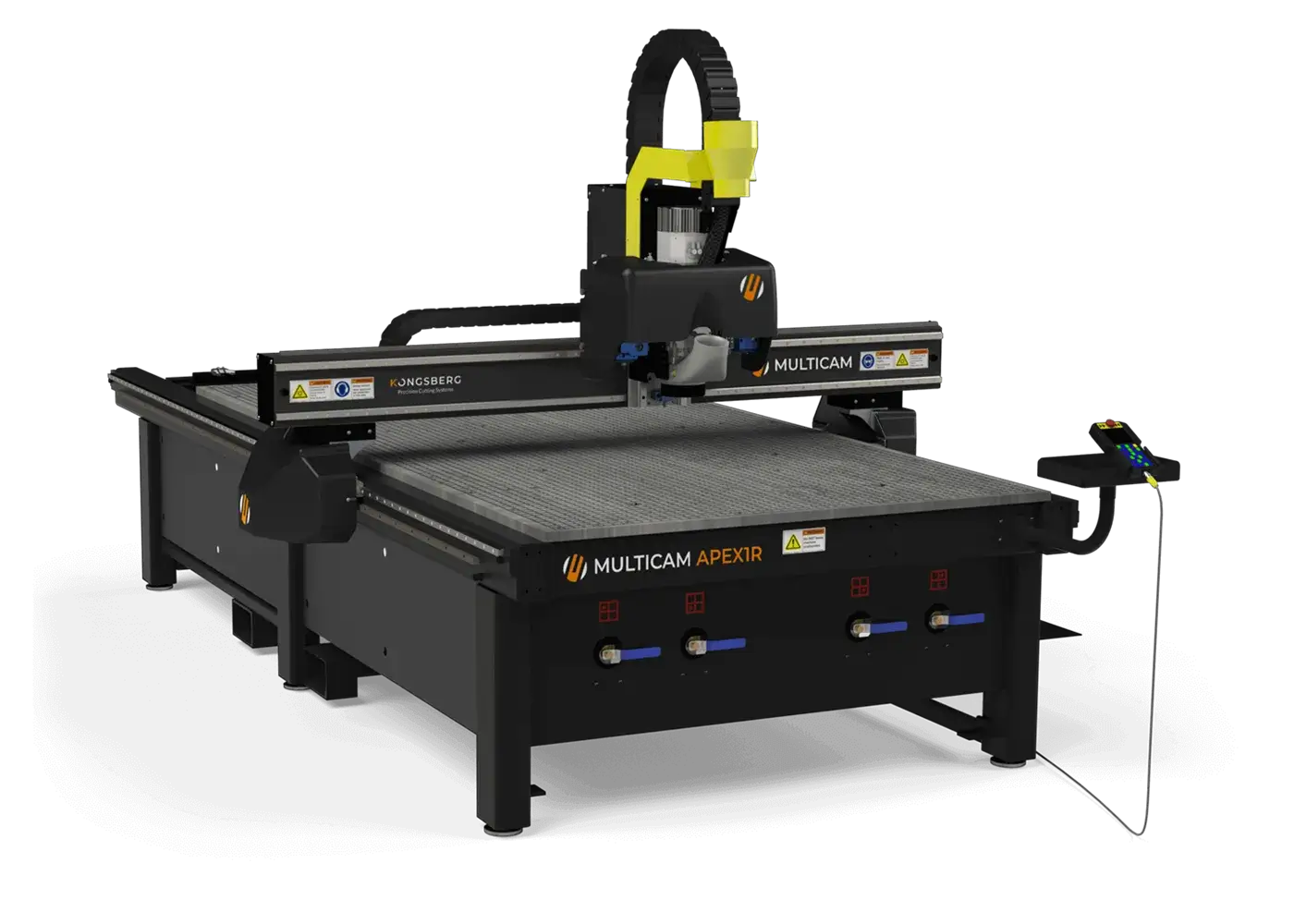

Apex 1R CNC Router

Affordable CNC routing and knife cutting capability with Apex 1R Router

The MultiCam Apex 1R CNC router is the machine of choice for sign industry, acrylic cutting, general routing, and offers the flexibility of a heavy industrial router, with the benefit of optional camera, and dual knives for digital finishing. Unlike most machines in this price range, the Apex 1R features an all-steel frame and table construction, heavy steel gantry and powerful spindle and vacuum pump options. This is no “light duty” router. With many installations from cabinet makers to graphics companies, we are certain you will be pleased with the Apex 1R Router’s capabilities.

Standard Specifications

4’x8’, 5’x10’ and 5’x12’ work envelope available

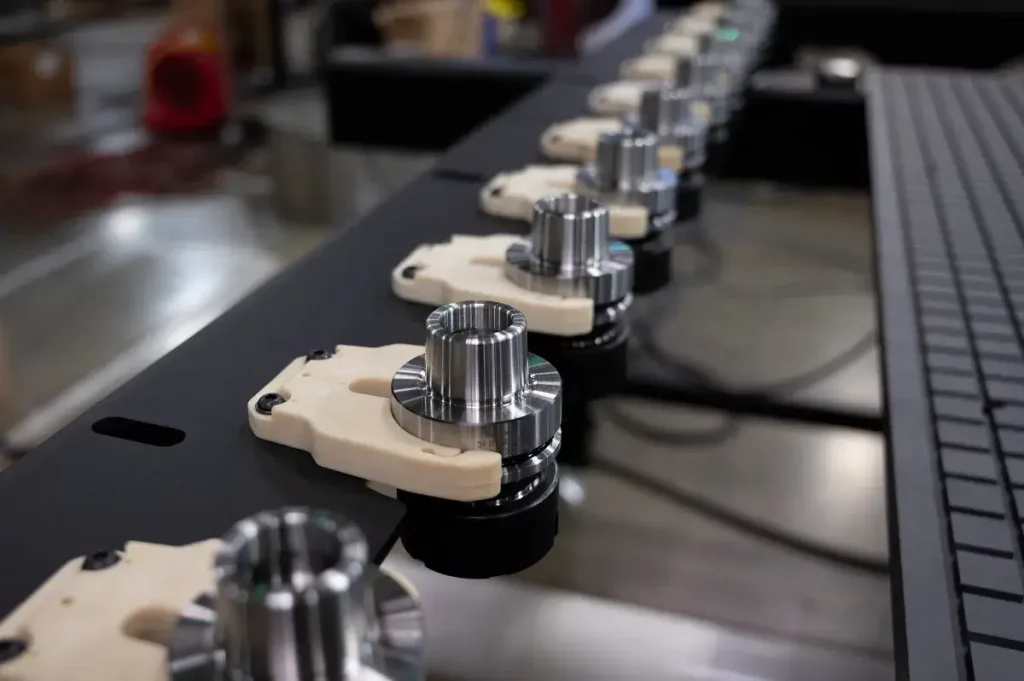

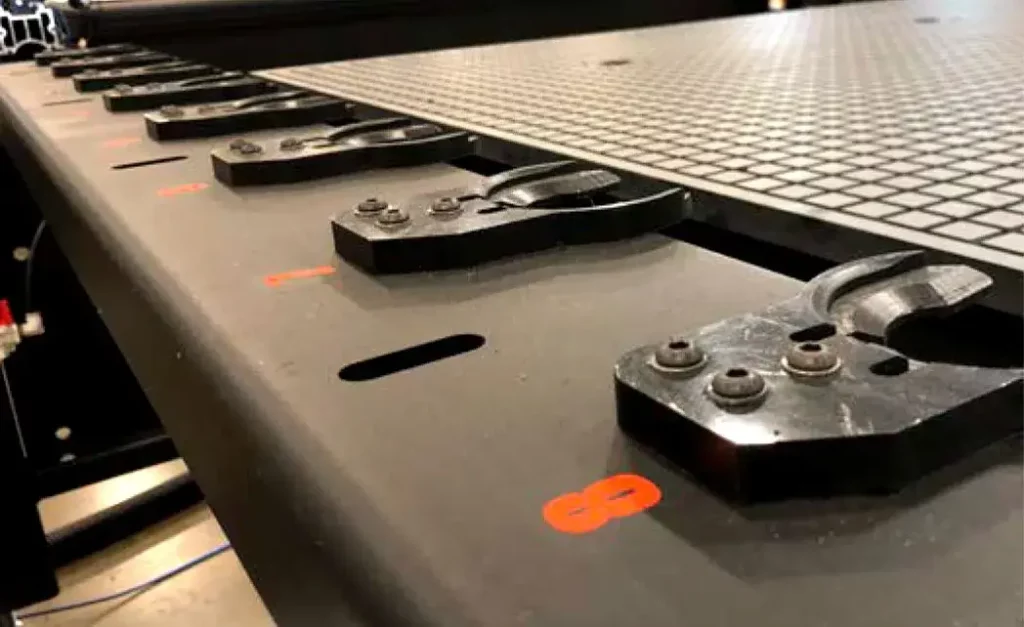

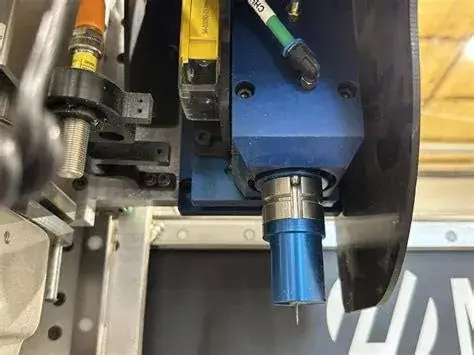

10HP 24,000 RPM spindle standard with 10 station tool changer

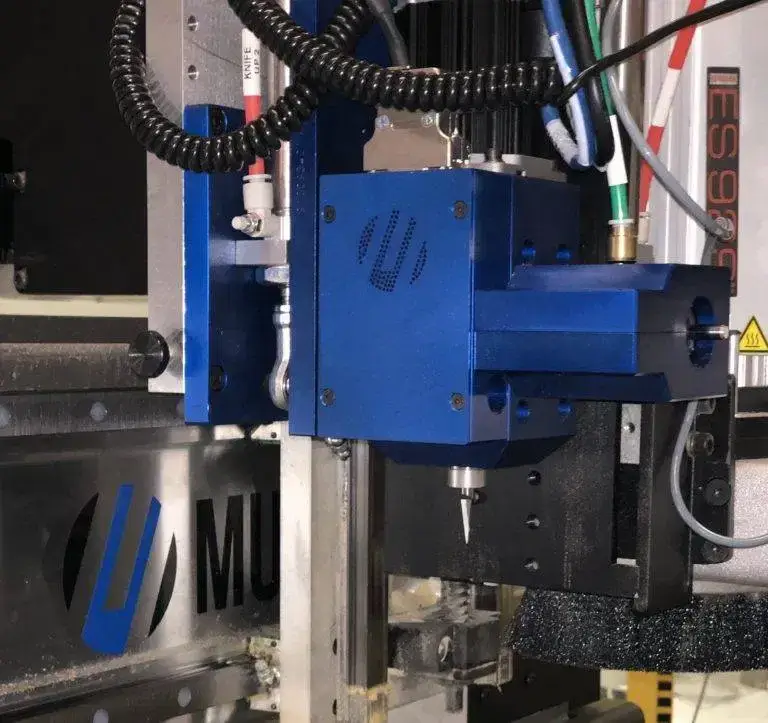

dual knife and camera available with automatic knife changer

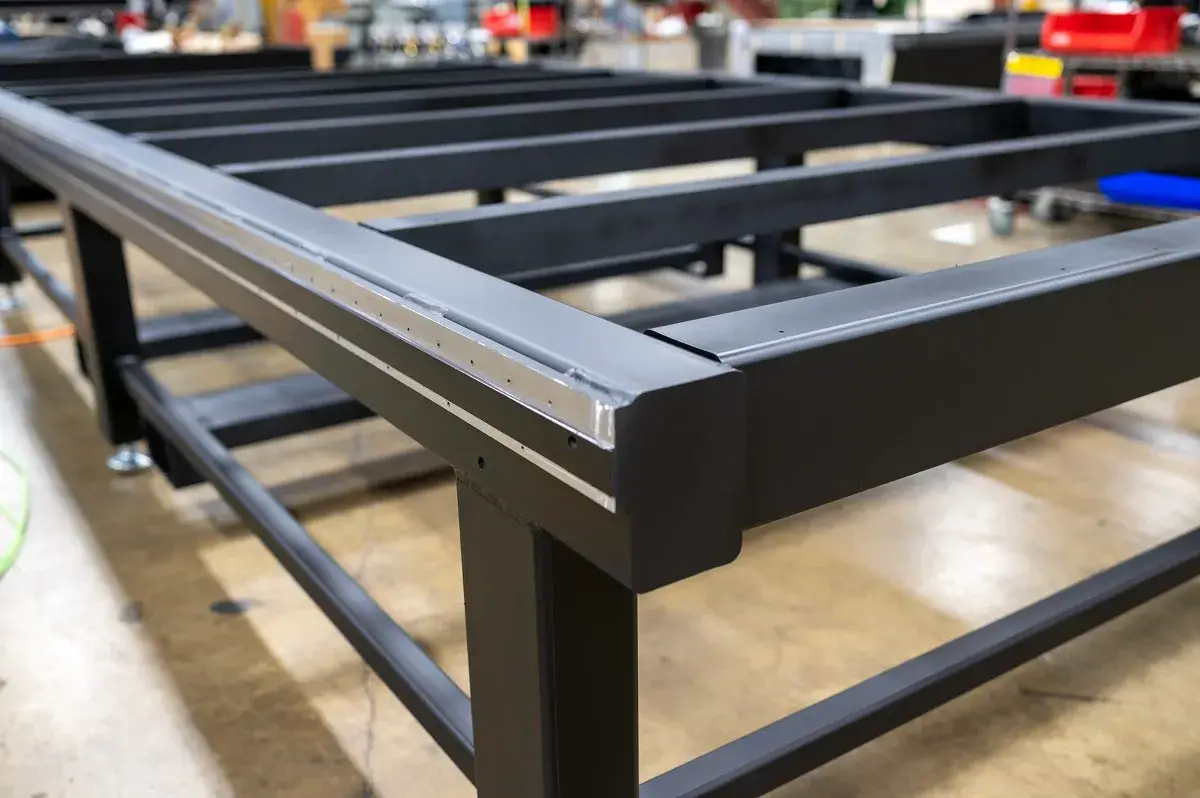

rigid frame and gantry construction made from 3/8” steel, welded, stress relieved and finish machined
large helical rack and pinion and digital servo equipped motion system

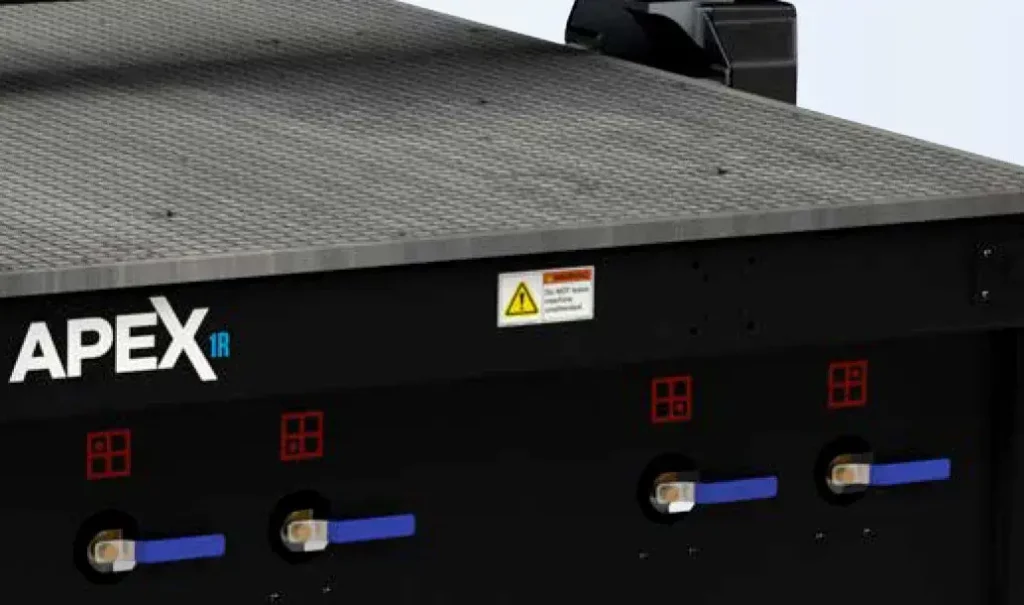

17HP regen blower for increased vacuum clamping of materials

Options

available with oscillating knife
available with tangential knife and camera
oil mister for aluminum cutting
single phase power available (Special order)

Table sizes

60″ x 120″ (1524mm X 3048mm)

60″ x 120″ (1524mm X 3048mm)

83″ X 121″ (2108mm X 3073mm)

Software

Compatible with many systems including

Versatile Material Cutting

The Apex1R CNC Router excels in cutting a diverse array of materials. It efficiently processes plastics, MDF, and melamine, delivering precision and quality. The router also handles plywood and aluminum with ease, ensuring clean cuts. Its versatility extends to foam board and ACM, making it ideal for a wide range of applications.

MDF

Plywood

Plastics

Melamine

Foam Board

Aluminum

ACM

Industry Segments that use Apex 1R CNC Router

The Apex 1R CNC Router is highly valued in several industries for its versatility and precision. In Sign Manufacturing, it’s essential for creating detailed and durable signs. The router excels in Plastic and Acrylic Machining, offering clean, precise cuts for various plastic-based projects. Additionally, its accuracy and efficiency in Woodworking and Millwork make it an indispensable tool for crafting intricate wooden designs and architectural millwork. This adaptability ensures the Apex1R is a key asset across these diverse sectors.

Sign Manufacturing

Plastics / Acrylic Machining

Woodworking / Millwork

Download Your Machine Layout Now

Get a detailed look at the APEX 1R CNC Router with our downloadable machine layout. Easy and quick, it’s your first step to seamless integration!

Reliable Coverage with Our Warranty Protection for Parts and Labour
