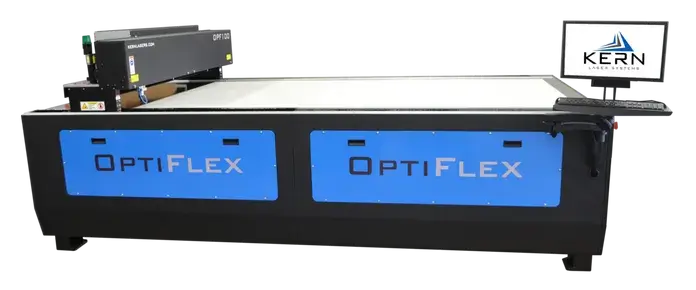

Kern OptifFlex CO2 Laser Systems

The OptiFlex is Kern’s flagship large format, high performance laser system. The HyperDual motion package installed on the OptiFlex features a rack and pinion design and powerful servo motors at each side of the table. Undoubtedly, the Kern CO2 Laser OptiFlex is setting the standard for large format laser cutting and engraving systems.

Kern CO2 Laser

Heavy-duty steel chassis

HyperDual motion

Rack and pinion design

with dual servo motors

Steel Chassis:

Kern CO2 Laser systems start with a precision-machined, heavy-duty steel weldment as the foundation. This one-piece weldment design ensures that the machine arrives fully assembled, significantly cutting down on installation time.

Rack and Pinion design:

Kern’s next generation HyperDual motion package features a rack and pinion design driven by powerful servo motors at each side of the table. The result is smooth cut radiuses, quick acceleration rates, and the fastest processing speeds Kern has presented to date.

Standard Features

Hyperdual motion package
Improved motion system
Cut acceleration rates
Upgraded x axis
Motion package
Laser source
Exhaust system
Chilling unit
Computer / software
Safety
Steel chassis

Metal Cutting
K-Vision Camera
Pipe Rotary
Multi-Zone Table
Fume Extractor
Advanced Safety Package
Mapped Table under controlled conditions
Custom gantry heights by request

Laser Classification – Class 4 CO2 Laser
Laser Wattage – 100,150, 200, 250, 400 and 650 watts
*Position Accuracy – +/- .002″/ft
Repeatability – +/- .0005″/ft
Max Cutting Speed – 20”/sec
Max Engraving Speed – 150”/sec
Electrical – 230v/1ph, 230v/3ph, 415v/3ph CE, 480v/3ph
Vacuum Blower – Two Blowers, each 1500 CFM or greater
Air Assist – 100 – 250 PSI (9 -17 BAR)

Work Area

52″ x 50″

52″ x 100″

60″ x 120″

80″ x 120″

Footprint (W x L x H)

74″ x 87″ x 53″



74″ x 137″ x 53″

82″ x 157″ x 53″

102″ x 157″ x 53″

Weight

3500lbs

4700lbs

5500 lbs

7500 lbs

KCAM laser software,

CorelDRAW® and an easy-to-use PDF converter are

pre-installed on the computer.

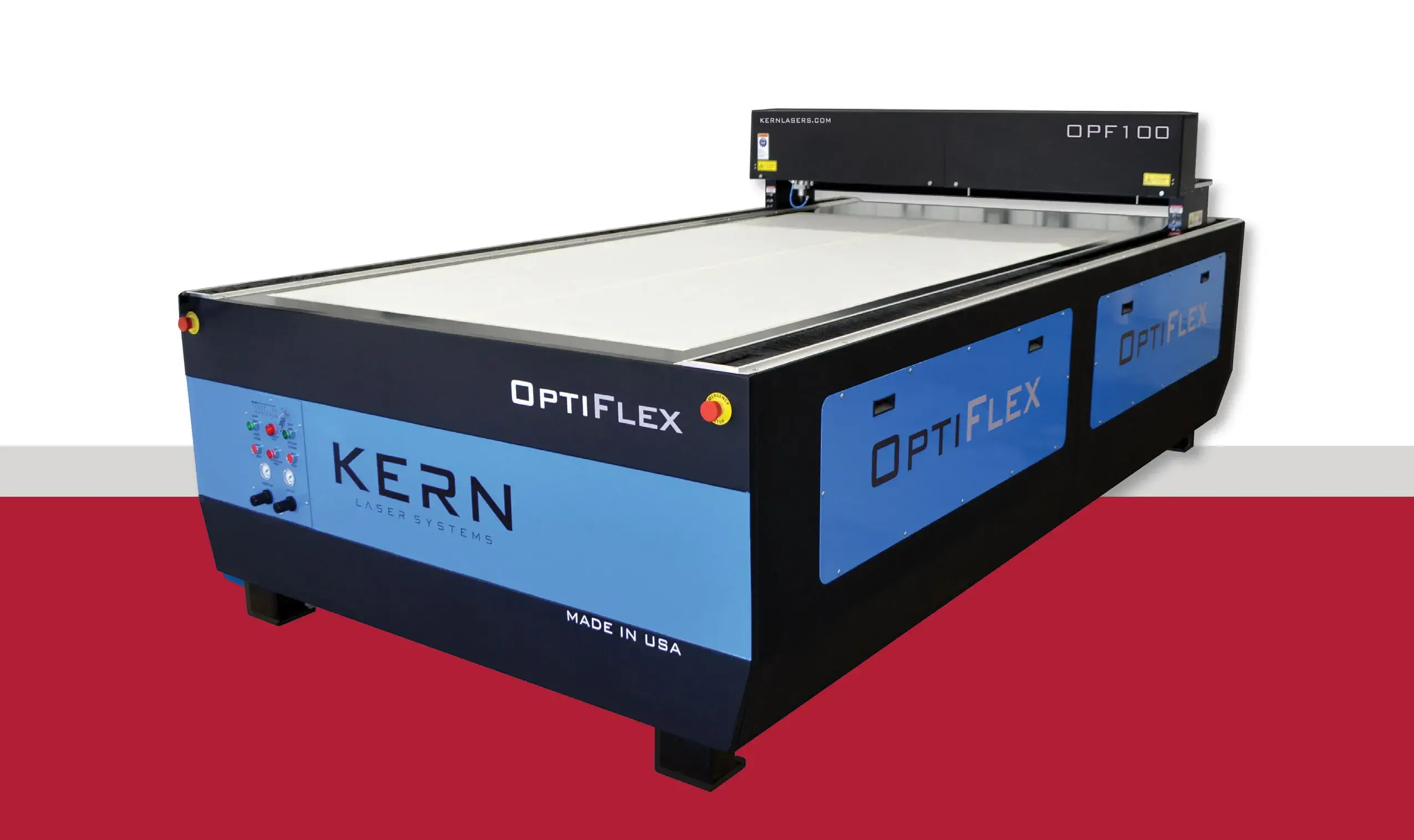

Kern OptifFlex CO2 Laser Systems

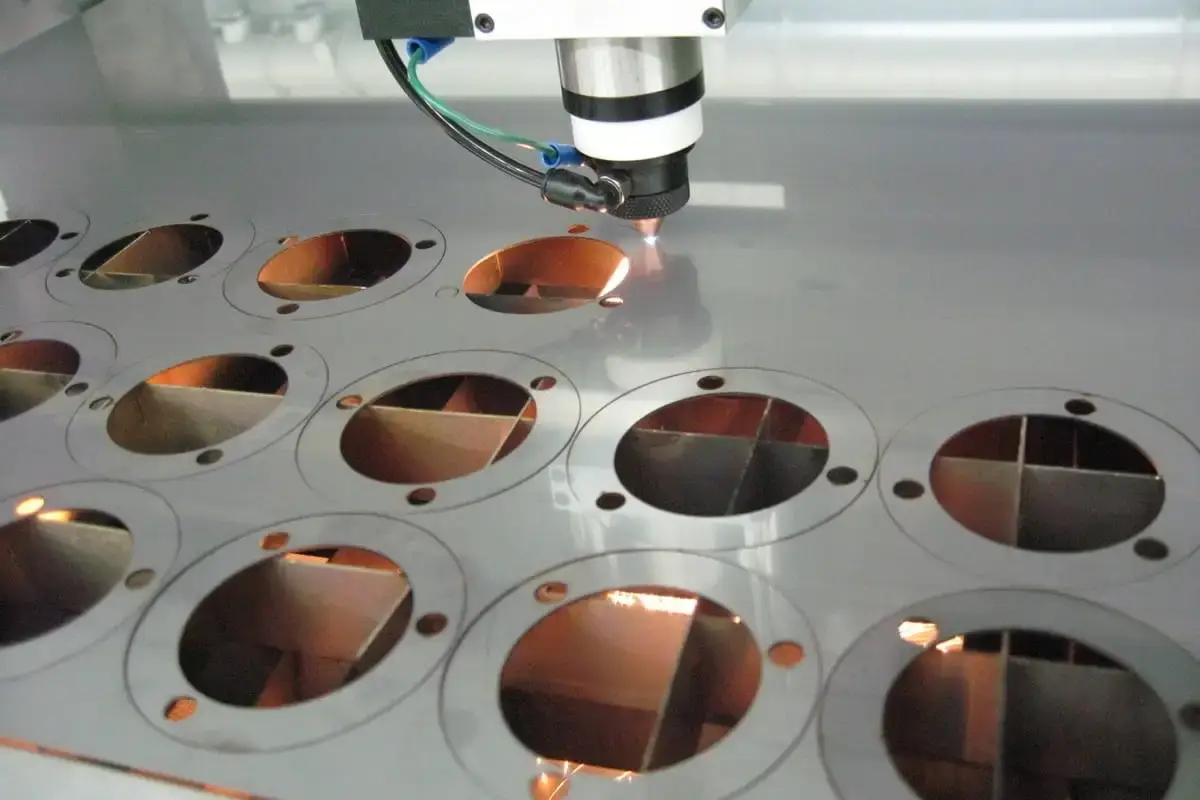

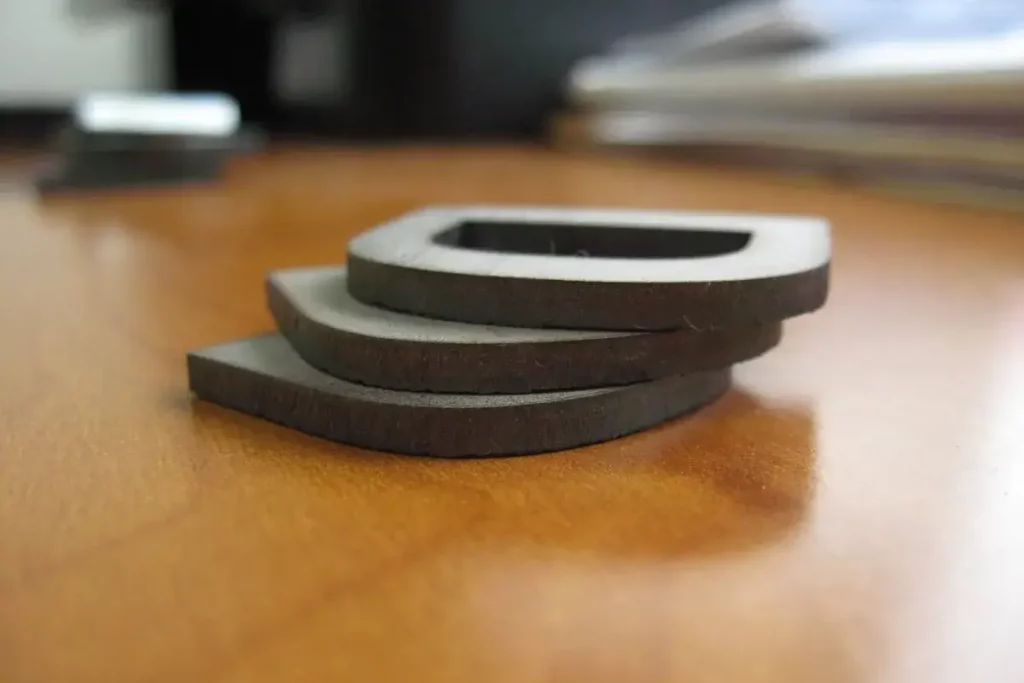

Kern OptifFlex CO2 Laser Systems cutting
kern-cutting

Just everything you need

Versatile Material Cutting

The Kern OptifFlex is not just a tool, but a game-changer for industries requiring intricate cutting and engraving.With its advanced CO2 laser capabilities, the Kern CO2 Laser can handle a diverse array of materials, ensuring top-notch quality and accuracy in every project Experience the next level of laser cutting with the Kern OptifFlex High Performance CO2 Laser Systems.

Composites

Composites

Fabric

Fabric

Granite

Granite

Leather

Leather

MDF

MDF

Plywood

Plywood

Steel

Steel

Stainless-Steel

Stainless Steel

Wood

Wood

Transforming Industries with Kern CO2 Laser Precision Cutting

The Kern OptifFlex High Performance CO2 Laser Systems excel across diverse sectors. In Woodworking, they deliver intricate precision; for Boating, they provide robust and accurate cuts. Job Shops benefit from their versatility in varied projects. In Aerospace, the system offers essential high precision. For Specialty applications, its adaptability to unique requirements makes it invaluable.

artefact

Aerospace

Woodworking

Woodworking

Boating

Job Shop

Specialty
