MJT 5 axis waterjet

Heavy Duty Waterjet for intricate shapes

High Pressure Technology with MJT 5 axis waterjet

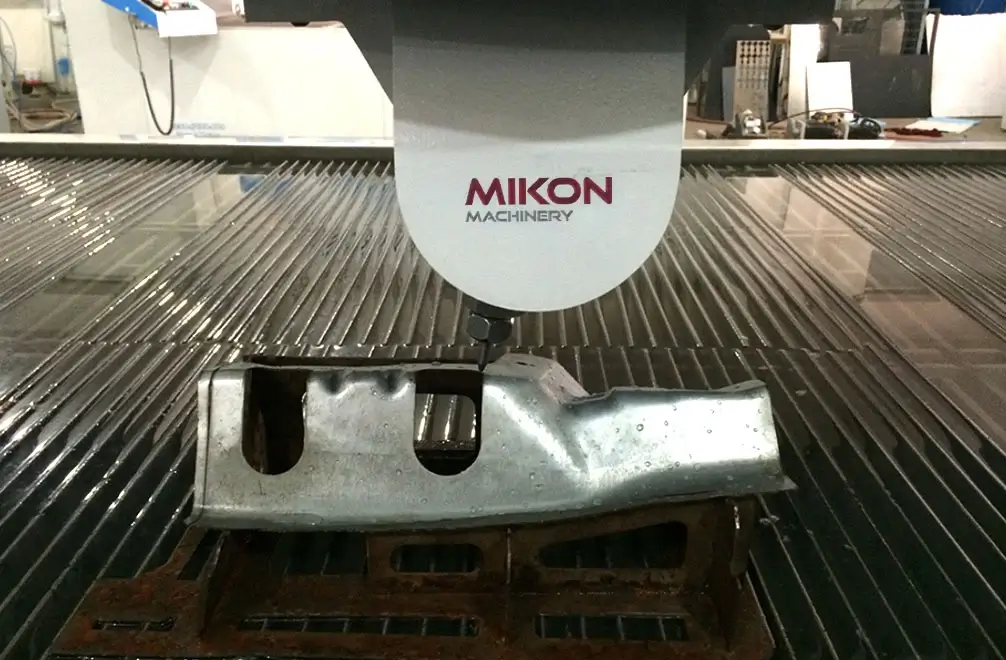

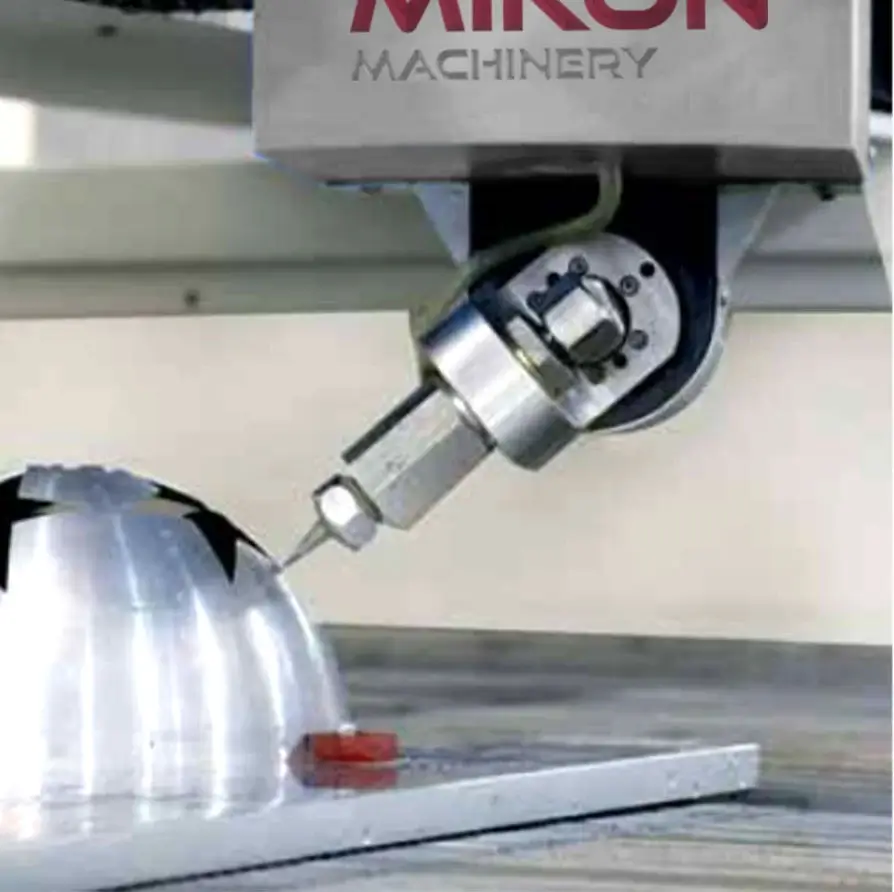

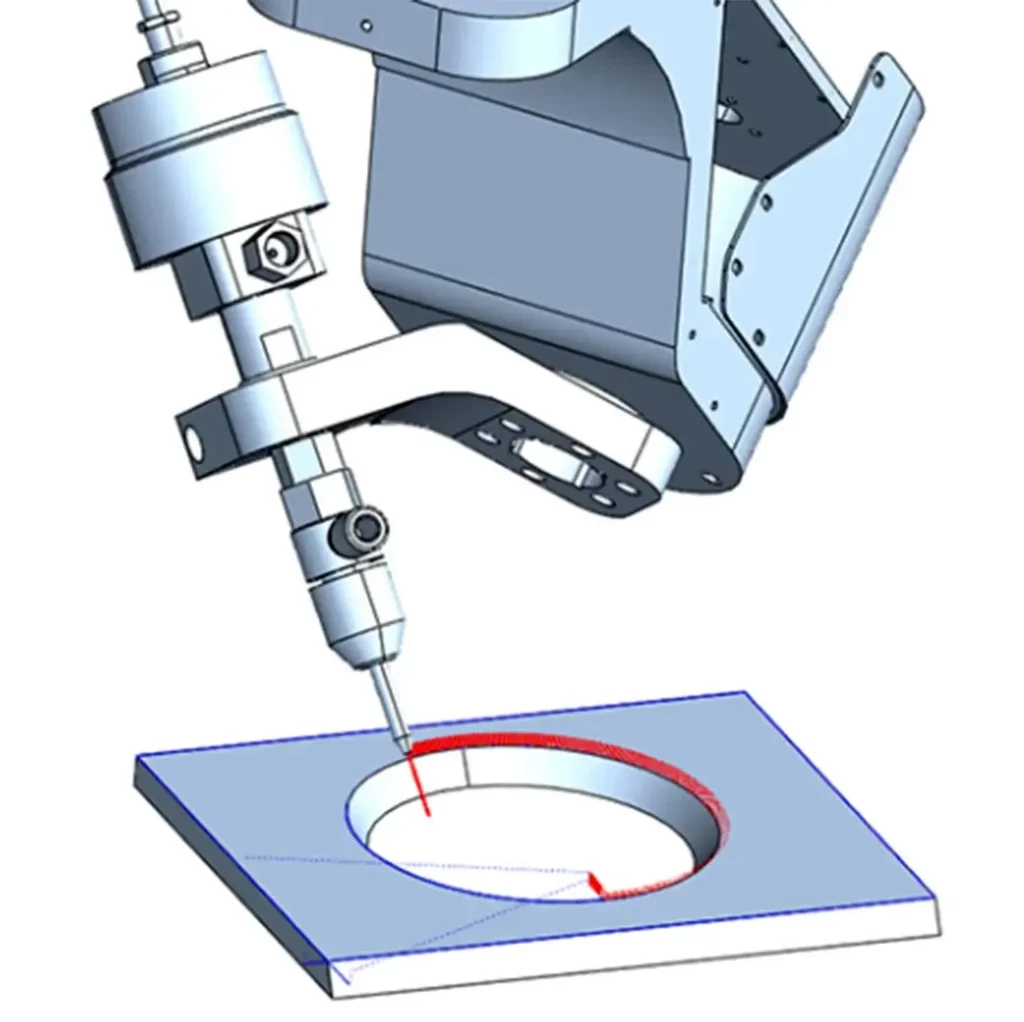

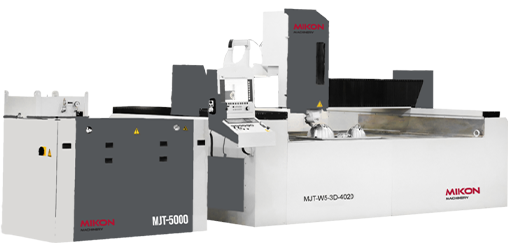

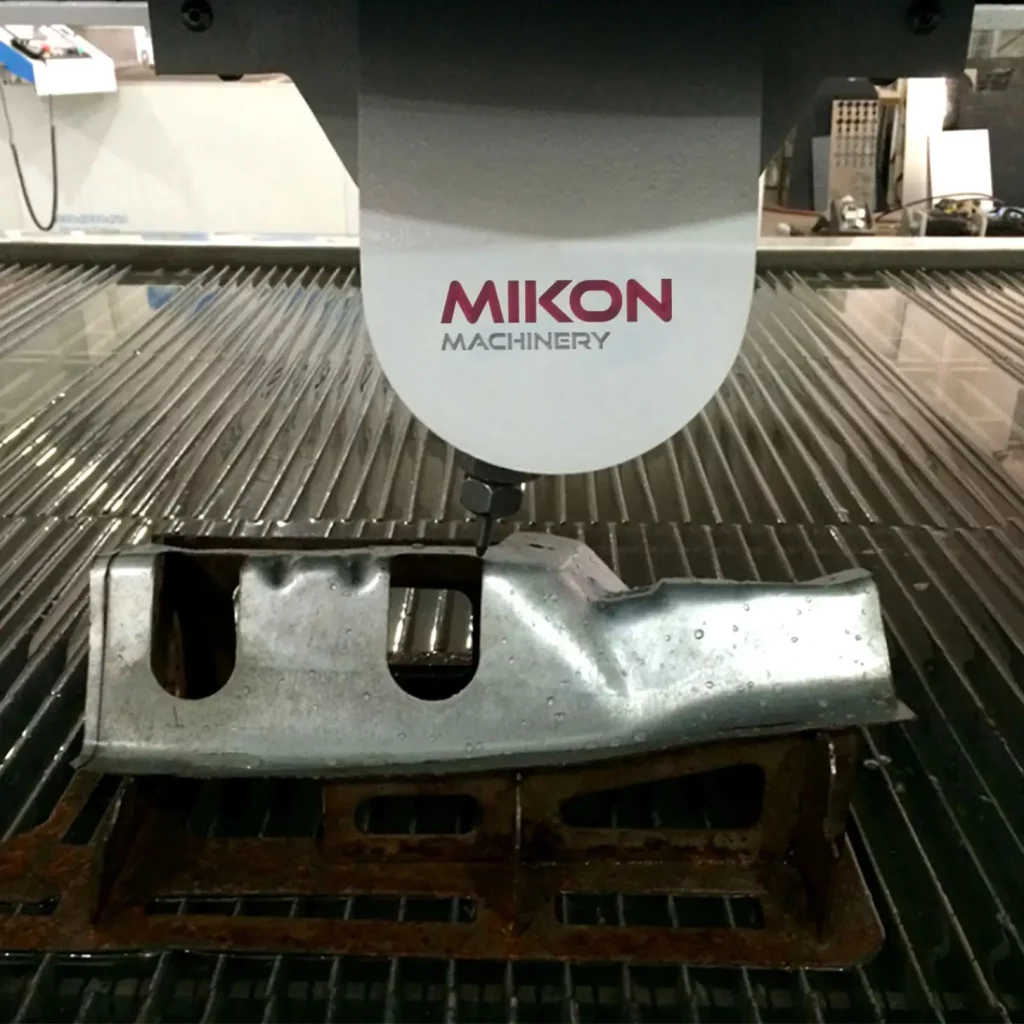

The MJT 5 axis bridge type waterjet is built on the same rugged platform as the MJT 3 axis model. The addition of a simultaneous 5 ax cutting head and high speed Bosch controller allows for smooth cuts of bevels and other complex geometry. This machine uses high speed controller/processors normally only found on 5 axis milling machines, allowing for smooth calculations and motion even on complex 3D models. This feature is perfect for cutting metals when heat affected zone (HAZ) is an issue, or when you need to cut non metallic materials like stone, plastics, rubber, or your mother-in law.

Standard Specifications

4000 BAR (58,000 PSI) 55 HP intensifier pump
5 axis Bosch Controller
Manual hand wheel
Pressurized automatic lubrication
Reinforced/Galvanized steel slats and supports to resist corrosion
Pressurized abrasive hopper

Options

5000 BAR (73,000PSI) 75 HP Pump
Second cutting head
Workpiece measurement sensor (establish top of workpiece)
Electric Drill to start pierce point on laminated materials
Rotary Axis
Chiller
Garnet Removal System

Table sizes

( WxL)

5’3″ x 10’2″ (1600x3100mm)

6’7″ x 10’2″ (2000x3100mm)

6’7″ x 13’2″ (2000x4000mm)

6’7″ x 19’8″ (2000x6000mm)

9’10” x 19’8″ (3000x6000mm)

6’7″ x 39’5″ (2000x12000mm)

9’10” x 39’5″ (3000x12000mm)

13’2″ x 39’5″ (4000x12000mm)

Table travel may be limited in 5 axis mode to prevent cutting into side of tank

Software

IGEMS annual or permanent license

Versatile Material Cutting

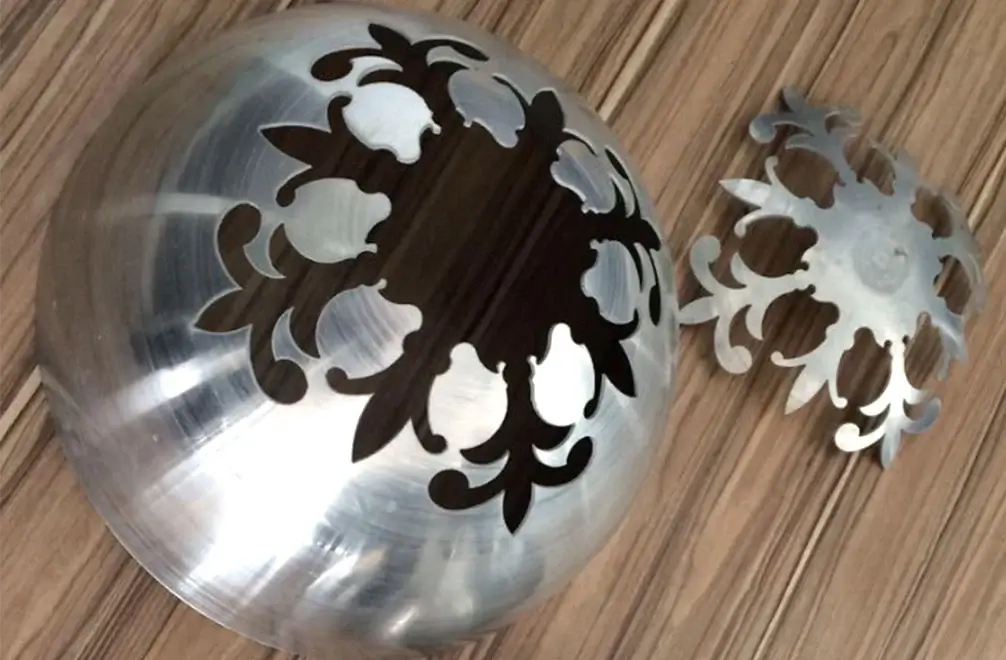

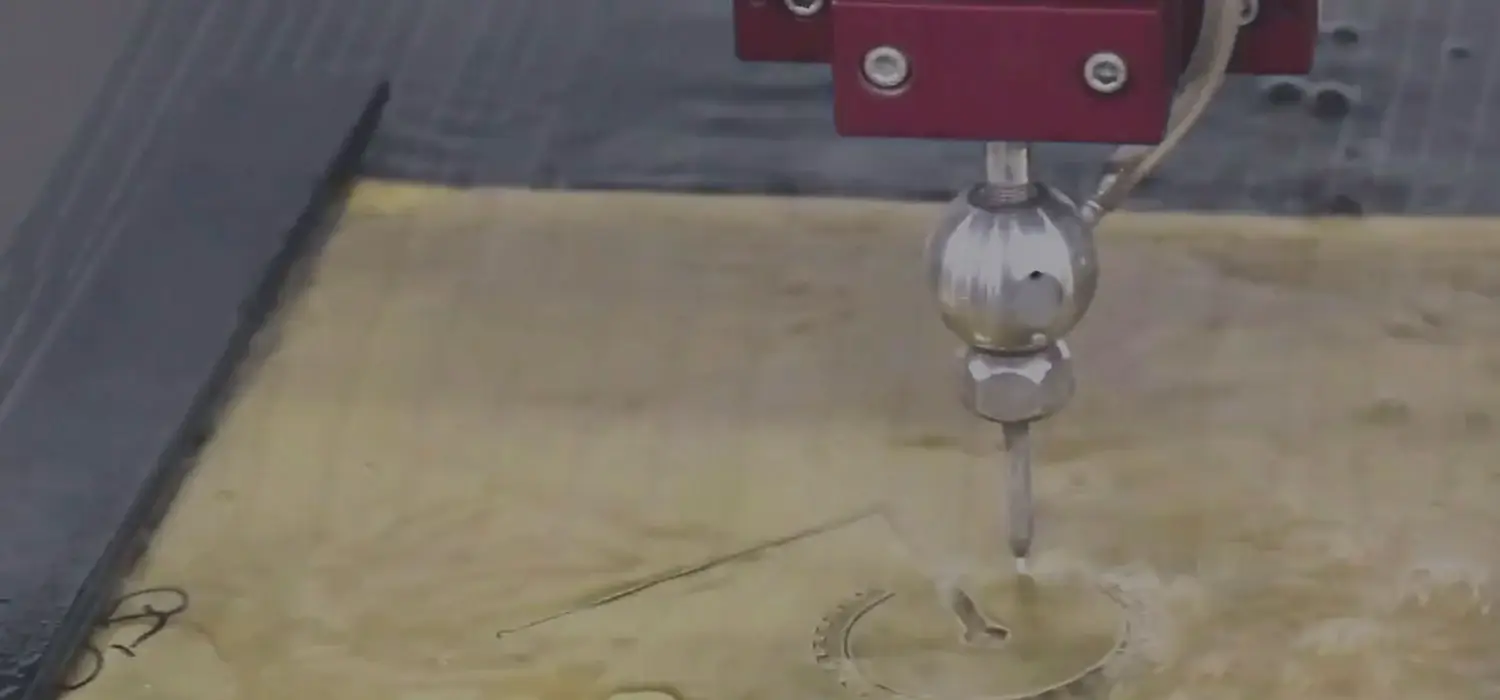

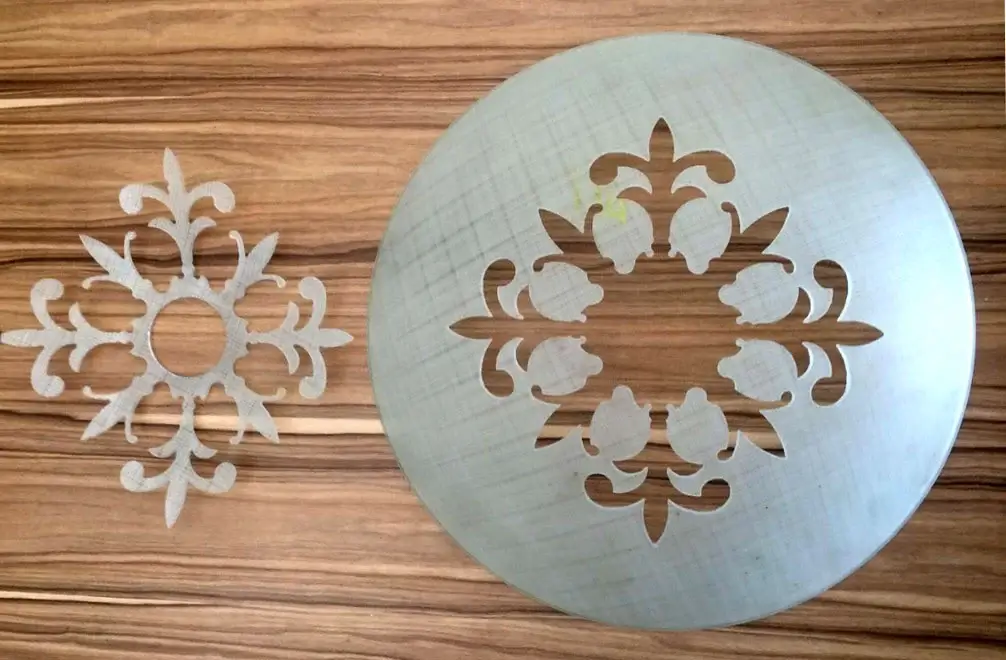

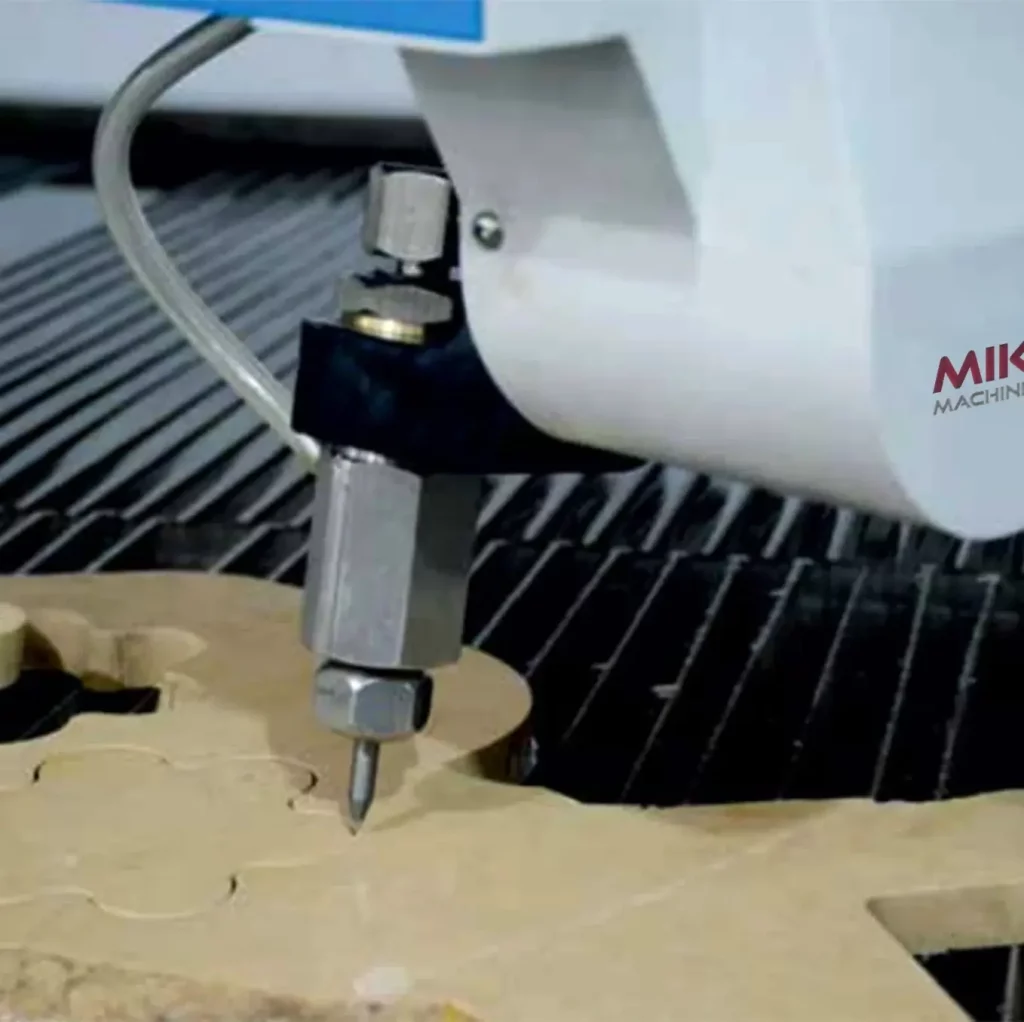

The MJT 5-axis Waterjet CNC machine demonstrates exceptional versatility with its ability to precisely cut a variety of materials. From cutting through thick 135 mm Aluminum with ease to intricately shaping Coal Gaskets, the machine operates with impeccable accuracy. It also showcases its finesse by carving detailed patterns into Marble and executing clean cuts in Silicon. This adaptability to both hard and soft materials underscores its suitability for industries that work with Metals, Plastics, Stone, Glass, and Rubber, offering them a single solution for diverse cutting needs.

Metals

Plastics

Rubber

Stone

Glass

Industry Segments that use MJT Series Waterjet

The MJT waterjet system is designed for heavy industrial use in a wide range of industries where other cutting methods, such as laser, router, milling or plasma and not desirable. While waterjet is not always the best method of cutting, it is the most flexible cutting system available, since it can cut literally any material. We help our customers evaluate different cutting methods to see if waterjet makes sense, and analyze pros and cons of each method to identify which system provides the best ROI and lowest cost per part. Waterjet machines are used in a vast range of manufacturing sectors in Canada and beyond.
