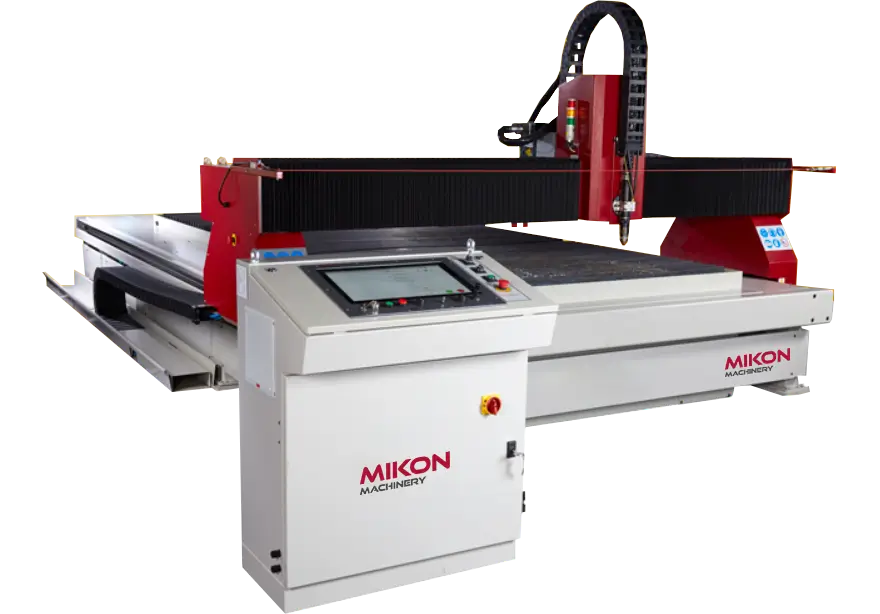

ProCut CNC Plasma Cutting Machine

High Performance Plasma machinery using USA Built Hypertherm components and controller.

The Mikon procut CNC Plasma spares no expense in engineering and building a robust, heavy duty machine ready for use in steel service centers and other fabrication shops running multiple shifts per day. Utilizing Hypertherm XPR high definition plasma power supplies and torches, Hypertherm Edge control, this system is designed for years of rugged metal fabrication use. With options for dual plasma torches, OXY torch, even milling/drilling/tapping options, this machine will do it all!

Standard Specifications

3 Axis Automatic Cutting HeadHypertherm Edge Connect CNC
Hypertherm Edge Connect CNC
Hypertherm Plasma Power Source
19,5″ Touch Screen
Hypertherm Pronest Nesting software
True Hole Technology
Torch Collision Protection System
Automatic Torch Height Controle
Axis positioning accuracy ± 0,02 mm
Axis positioning seed max. 20 m/min.
Remote assistance
Laser pointer for plate alignment
Automatic dust and fume extraction system
Pause / resume last part (Eg. electricity cut)

Options

Plasma Power Sources
- HPRXD Series
  - HPR400XD
  - HPR800XD
- XPR Series
  - XPR170 – choice of CORE / VVVI / OPTIMIX Automatic Gas consoles
  - XPR300 – choice of CORE / VVVI / OPTIMIX Automatic Gas consoles
Oxy Cutting System with capacitive sensor system
Oxy Cutting System with Auto Gas Console
Tube Cutting
Downfraft Fume Filtration System
Lateral downdraft for slag collection system

Table sizes

Model	TABLE WIDTH	TABLE LENGTH	X AXIS	Y AXIS	WIDTH	LENGTH	HEIGHT	WEIGHT
15/30	1650	3155	1600	3050
20/40	2150	4200	2100	4100	3500	5500	2100	5400
20/60	2150	6300	2100	6200	3500	7700	2100	7000
20/80	2150	8400	2100	8300	3500	9500	2100	8600
20/120	2150	12600	2100	12500	3500	13500	2100	11800
30/40	3150	4200	3100	4100	4500	5500	2100	6600
30/60	3150	6300	3100	6200	4500	7700	2100	8700
30/120	3150	12600	3100	12500	4500	14000	2100	15200
30/240	3150	25200	3100	25100	5500	27000	2100	27600
40/60	4150	6300	4100	6200	5500	7700	2100	10800
40/120	4150	12600	4100	12500	5500	14000	2100	19800
40/150	4150	15750	4100	15650	5500	17300	2100	25700
40/240	4150	25200	4100	25100	5500	27000	2100	37800

Software

ProNest Software
Metalix Software

Versatile Material Cutting

This advanced Procut CNC Plasma machine efficiently handles a variety of materials, offering precise cuts for industrial, construction, and design applications. Its versatility in processing different metal types makes it an essential tool for efficient and accurate metal fabrication, underlining its pivotal role in streamlining production processes.

Steel

Stainless Steel

Aluminum

Transforming Industries with Procut CNC Plasma

The ProCut CNC Plasma Technology elevates precision and efficiency, making a significant impact on Heavy Fabrication, Mining, and Pressure Vessel industries. In Heavy Fabrication, it accelerates the creation of intricate components with remarkable accuracy. For the Mining Industry, it enhances the durability and quality of equipment fabrication. In the realm of Pressure Vessels, the technology’s exactness in manufacturing is crucial for safety and performance, proving pivotal for businesses aiming to improve their operational quality and efficiency.

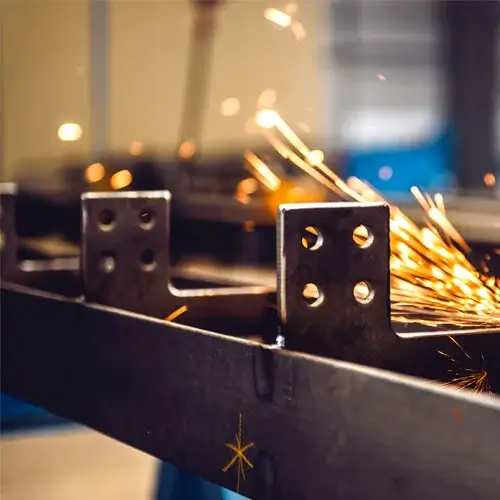

Heavy Fabrication

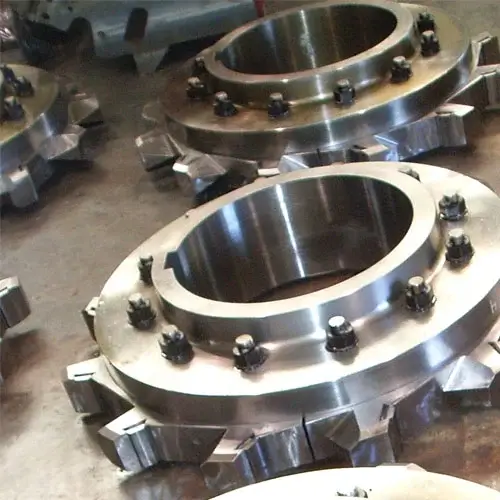

Minining Industry

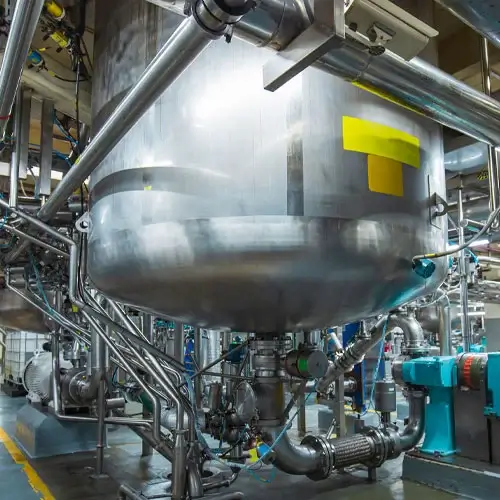

Pressure Vessels

Download Your Machine Layout Now

If you require a detailed overview of the Procut CNC Plasma Cutting Machine’s layout, please don’t hesitate to contact us. We can provide the layout details for your preferred machine size, ensuring you have all the necessary information to make the best decision for your needs.
