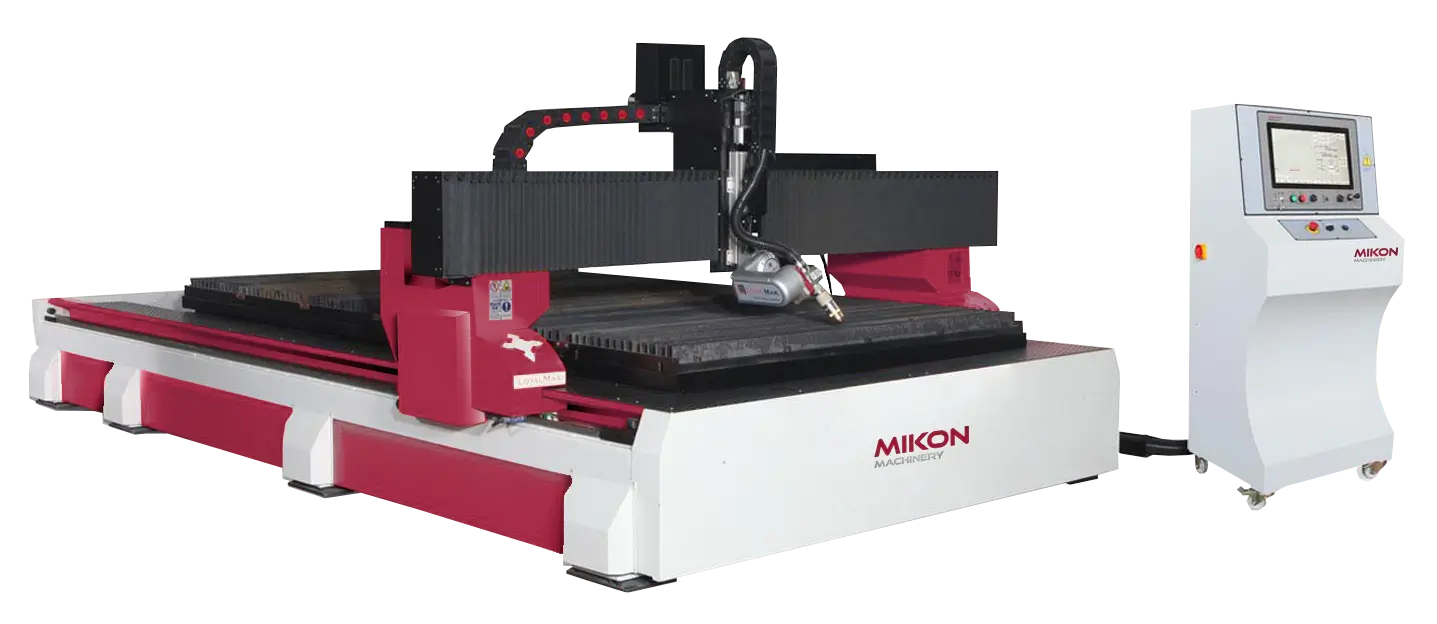

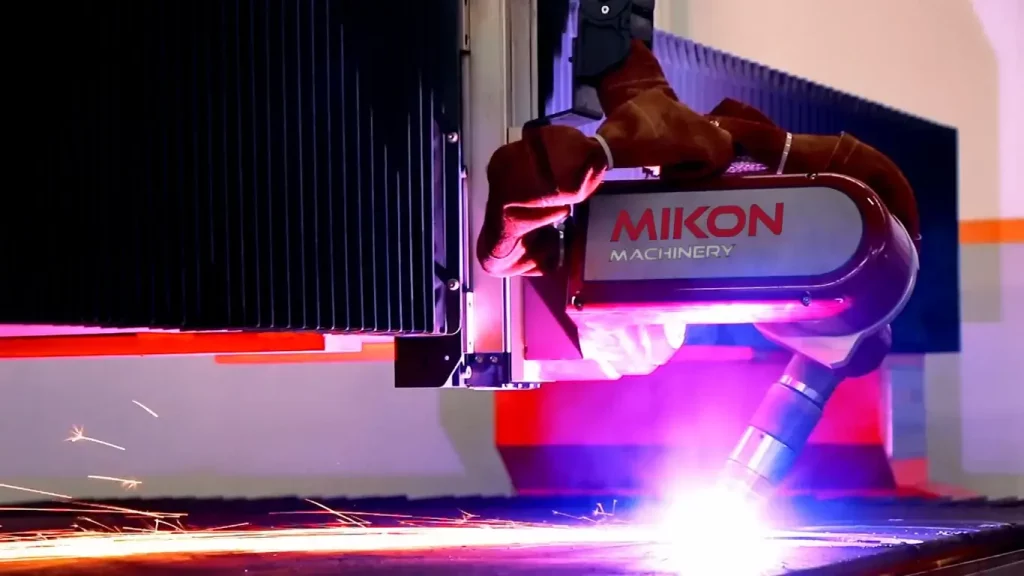

BevelHead CNC Plasma Cutting Machine

Super heavy duty machine designed for the most demanding applications.

High Performance Plasma machinery using USA Built Hypertherm components and controller.

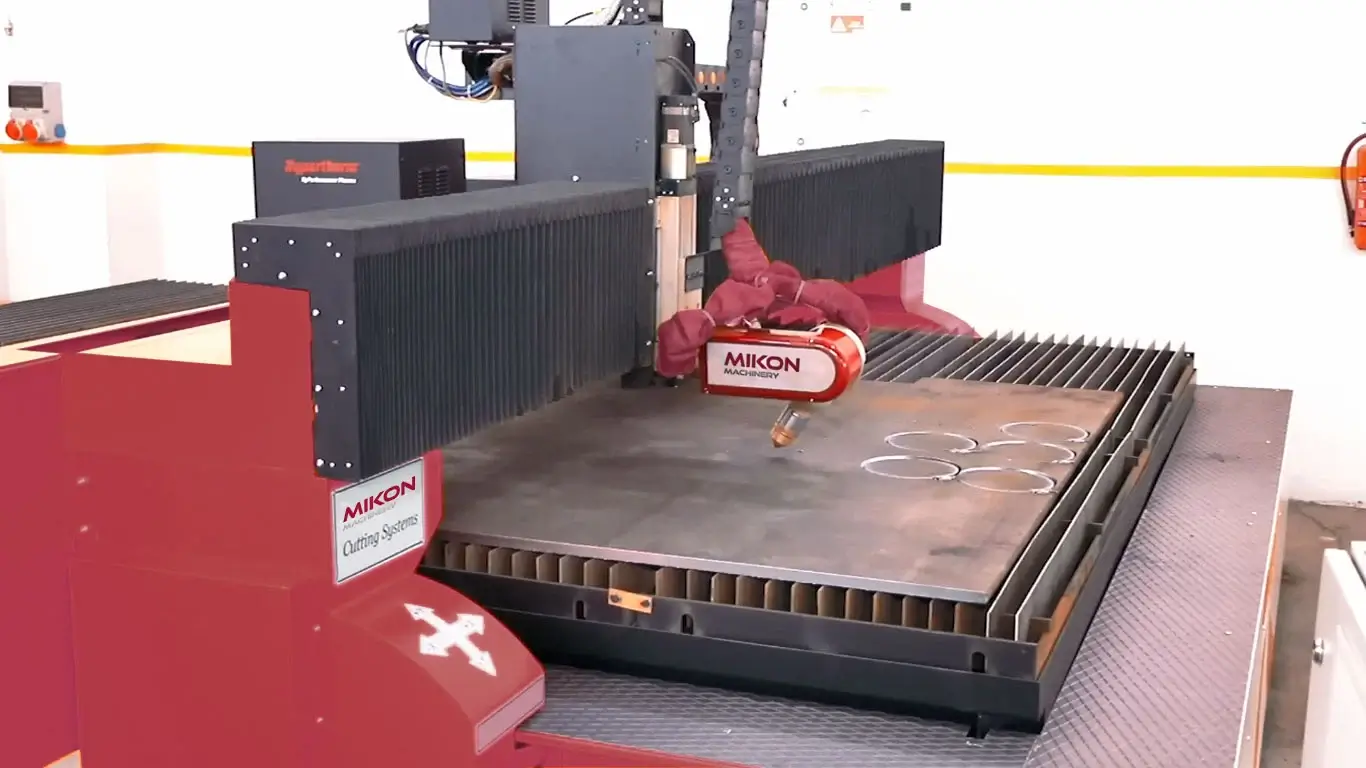

The Mikon BevelHead CNC Plasma spares no expense in engineering and building a robust, heavy duty machine ready for use in steel service centers and other fabrication shops running multiple shifts per day. Utilizing Hypertherm XPR high definition plasma power supplies and torches, Hypertherm Edge control, this system is designed for years of rugged metal fabrication use. With options for dual plasma torches, OXY torch, even milling/drilling/tapping options, this machine will do it all!

Standard Specifications

5 Axis Automatic Cutting HeadHypertherm Edge Connect CNC
Hypertherm Edge Connect CNC
Hypertherm Plasma Power Source
19,5″ Touch Screen
Hypertherm Pronest Nesting software

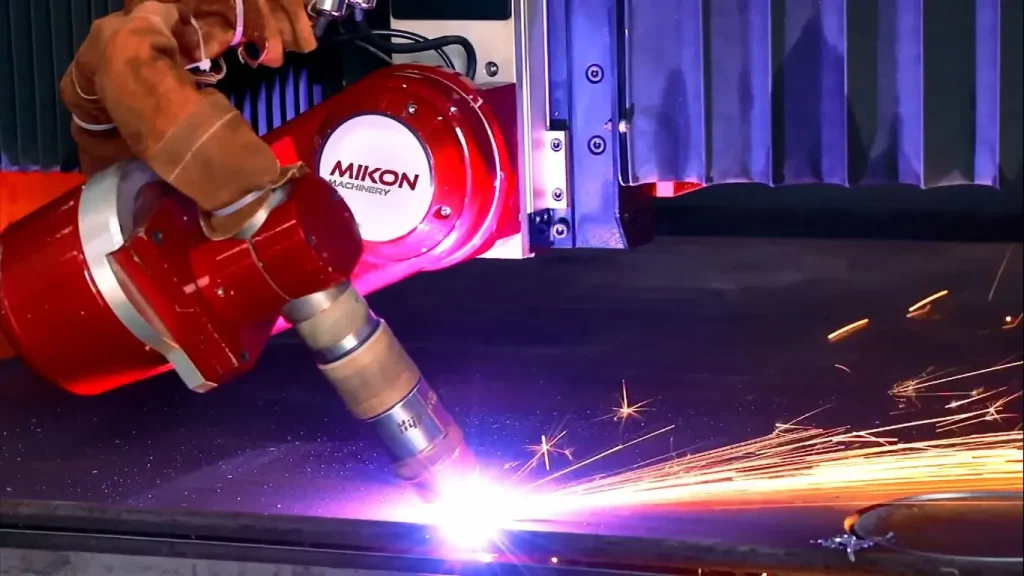

True Bevel Technology
True Hole Technology
Torch Collision Protection System
Automatic Torch Height Controle
Axis positioning accuracy ± 0,02 mm
Axis positioning seed max. 20 m/min.
Remote assistance
Laser pointer for plate alignment
Automatic dust and fume extraction system
Pause / resume last part (Eg. electricity cut)

Options

Plasma Power Sources
- HPRXD Series
  - HPR400XD
  - HPR800XD
- XPR Series
  - XPR170 – choice of CORE / VVVI / OPTIMIX Automatic Gas consoles
  - XPR300 – choice of CORE / VVVI / OPTIMIX Automatic Gas consoles
Oxy Cutting System with capacitive sensor system
Oxy Cutting System with Auto Gas Console
Tube Cutting
Downfraft Fume Filtration System
Lateral Drawers for slag collection system

Table sizes

Model	15/30	15/60	20/40	20/60	15/30	20/40	20/60	20/80
TABLE WIDTH	1650	1650	2150	2150	1650	2150	2150	2150
TABLE LENGTH	3155	6300	4200	6300	3155	4200	6300	8400
BEVEL HEADX AXIS	1550	1550	2100	2100	1600	2100	2100	2100
BEVEL HEAD Y AXIS	3100	6200	4100	6200	3050	4100	6200	8300
WIDTH	2250	2250	2750	2750		3500	3500	3500
LENGTH	4900	7700	5900	7700		5500	7700	9500
HEIGHT	1735	1735	1735	1735		2100	2100	2100
WEIGHT	2700	4750	4150	5500		5400	7000	8600

Software

ProNest Software
Metalix Software

Versatile Material Cutting

The BevelHead CNC Plasma efficiently processes various materials, delivering precise cuts for industrial, construction, and design applications. Its versatility with different metal types establishes it as an essential tool for efficient and accurate metal fabrication.

Steel

Stainless Steel

Aluminum

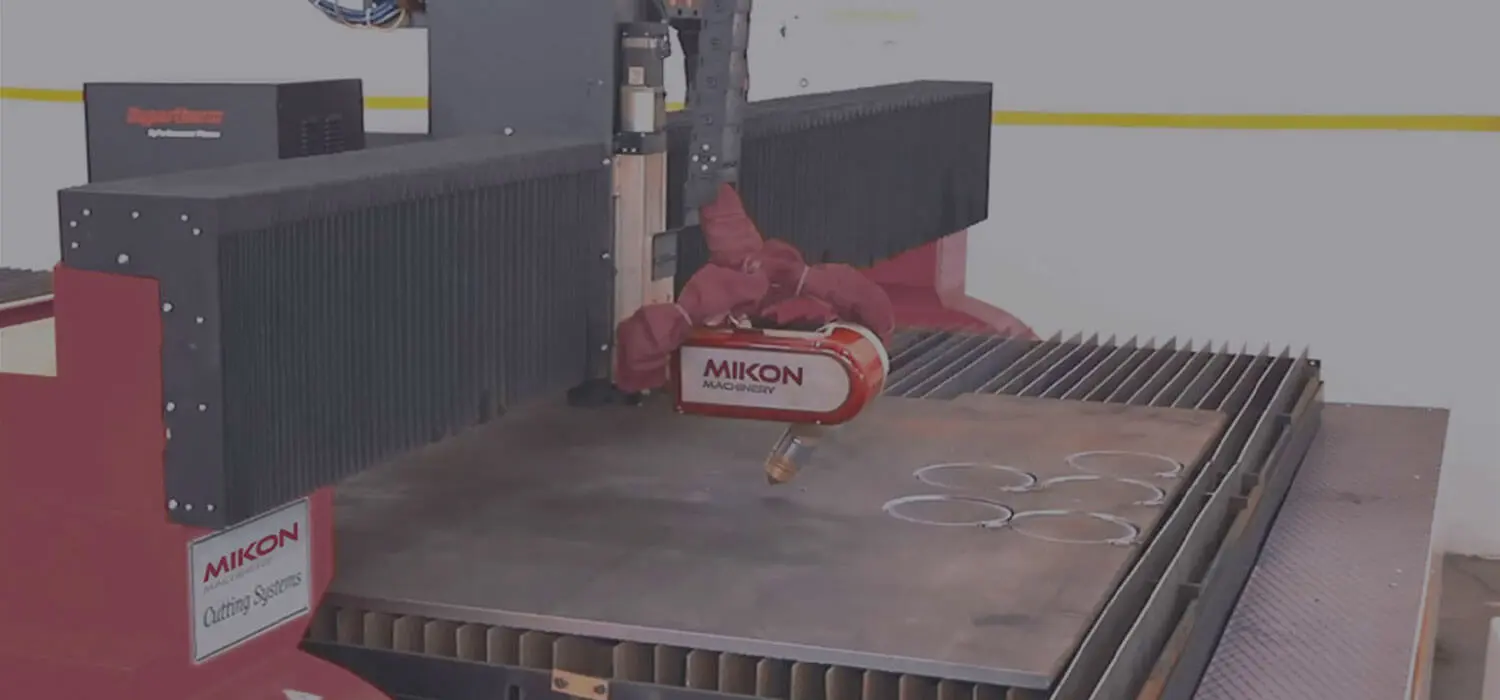

Transforming Industries with BevelHead CNC Plasma

The Bevel Cut Plasma Technology elevates precision and efficiency, making a significant impact on Heavy Fabrication, Mining, and Pressure Vessel industries. In Heavy Fabrication, it accelerates the creation of intricate components with remarkable accuracy. For the Mining Industry, it enhances the durability and quality of equipment fabrication. In the realm of Pressure Vessels, the technology’s exactness in manufacturing is crucial for safety and performance, proving pivotal for businesses aiming to improve their operational quality and efficiency.

Heavy Fabrication

Minining Industry

Pressure Vessels

Download Your Machine Layout Now

If you require a detailed overview of the BevelHead CNC Plasma Cutting Machine’s layout, please don’t hesitate to contact us. We can provide the layout details for your preferred machine size, ensuring you have all the necessary information to make the best decision for your needs.
