MJT Pure Water CNC waterjet

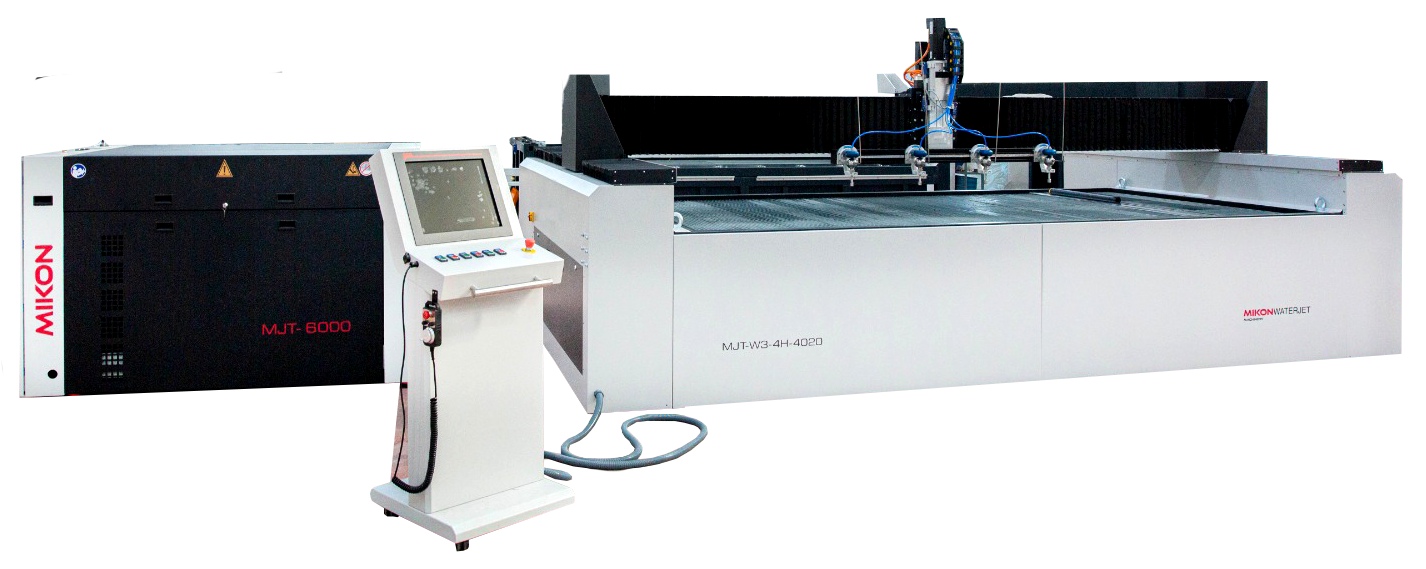

The MJT Pure Water CNC Waterjet, built on a sturdy platform without an abrasive delivery system, features a corrosion-resistant tank, heavy-duty bellows, a helical rack and pinion motion system, Bosch Rexroth Intensifier technology, and a Bosch Controller, making it ideal for cutting foam, gaskets, insulation, fabrics, and food items.

MJT-Series-Pure-Water-CNC-waterjet

Multiple Intensifier pump

options up to 100 HP,

6000 Bar (87,000 PSI)

Bosch Industrial Controller

Heavy plate welded tank, painted,

complete with lifting hooks

Galvanized steel slats and slat

supports, with capacity for

heavy work pieces

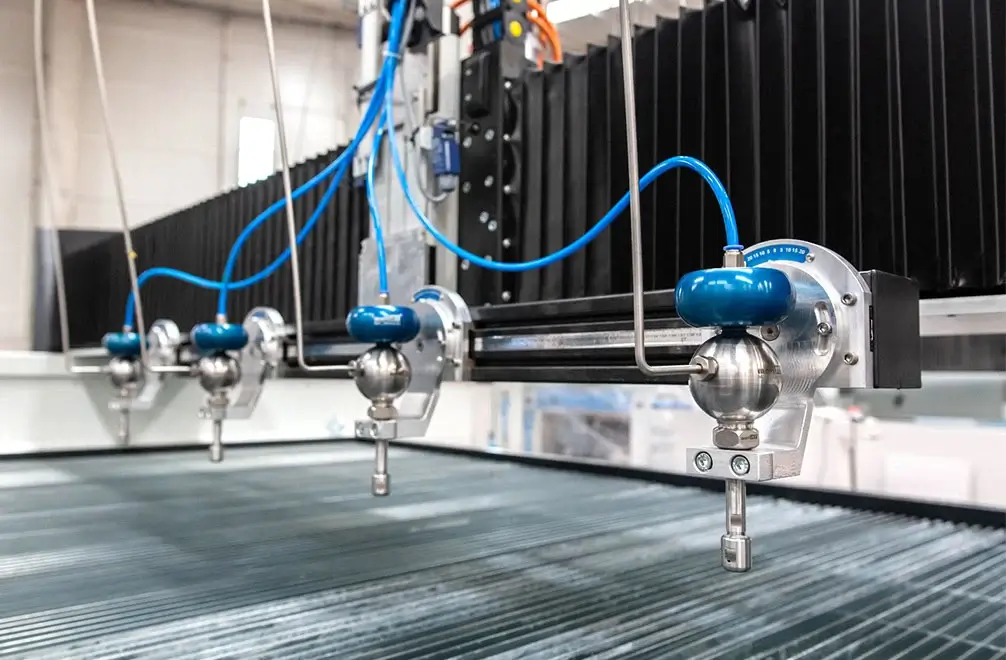

1 to 4 pure water

cutting heads, with

manual tilt option

Thick industrial bellows to

keep out dirt and water to

protect motion system

Ground and hardened linear

ways and helical gear motion

system

Standard Specifications
  • 4000 BAR (58,000 PSI)  55 HP intensifier pump
  • Bosch controller
  • Manual hand wheel
  • Pressurized automtic lubrication
  • Reinforced/Galvanized steel slats and supports to resist corrosion
  • 5000 BAR (73,000PSI) 75  HP Pump
  • Second cutting head
  • Workpiece measurement sensor (establish top of workpiece)
  • Electric Drill to start pierce point on laminated materials
  • Rotary Axis
  • Chiller
  • extra option for 2 to 4 pure water cutting heads on spreader bar
( WxL)
5’3″ x 10’2″ (1600x3100mm)
6’7″ x 10’2″ (2000x3100mm)
6’7″ x 13’2″ (2000x4000mm)
6’7″ x 19’8″ (2000x6000mm)
9’10” x 19’8″ (3000x6000mm)
6’7″ x 39’5″ (2000x12000mm)
9’10” x 39’5″ (3000x12000mm)
13’2″ x 39’5″ (4000x12000mm)



IGEMS annual or permanent license

MJT-Series-Pure-Water-CNC-waterjet

Versatile Material Cutting

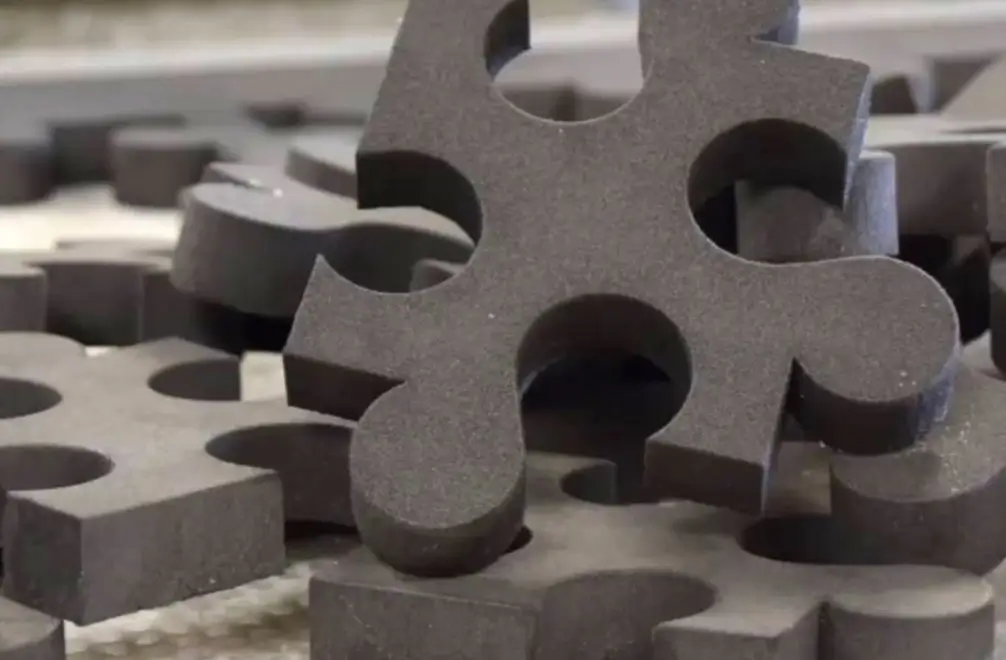

The MJT Pure Water CNC Waterjet can effortlessly process packaging foam materials, thin plastics, cork, textiles, and food products. The flexibility to add multiple cutting heads increases productivity significantly over single-head machines, while the optional manual tilt feature allows for quick and easy creation of tapered edges. Additionally, an optional manifold for controlling individual head on/off proves useful when only one or two heads are needed, enhancing the machine’s versatility for a wide range of applications.

Foam

Plastics

Textile

Cork

Industry Segments for the MJT Pure Water CNC Waterjet

The MJT Series Pure Water CNC Waterjet is a versatile tool for several industries. It precisely cuts packaging foam, essential for custom packaging solutions. In textiles, it provides accurate and intricate cuts, ideal for fabric shaping. For food processing, its clean cutting method is crucial for hygiene and precision. The machine is also adept at handling felt, offering fine and detailed cuts. This makes the MJT Series a professional yet user-friendly option across these diverse applications.

foam

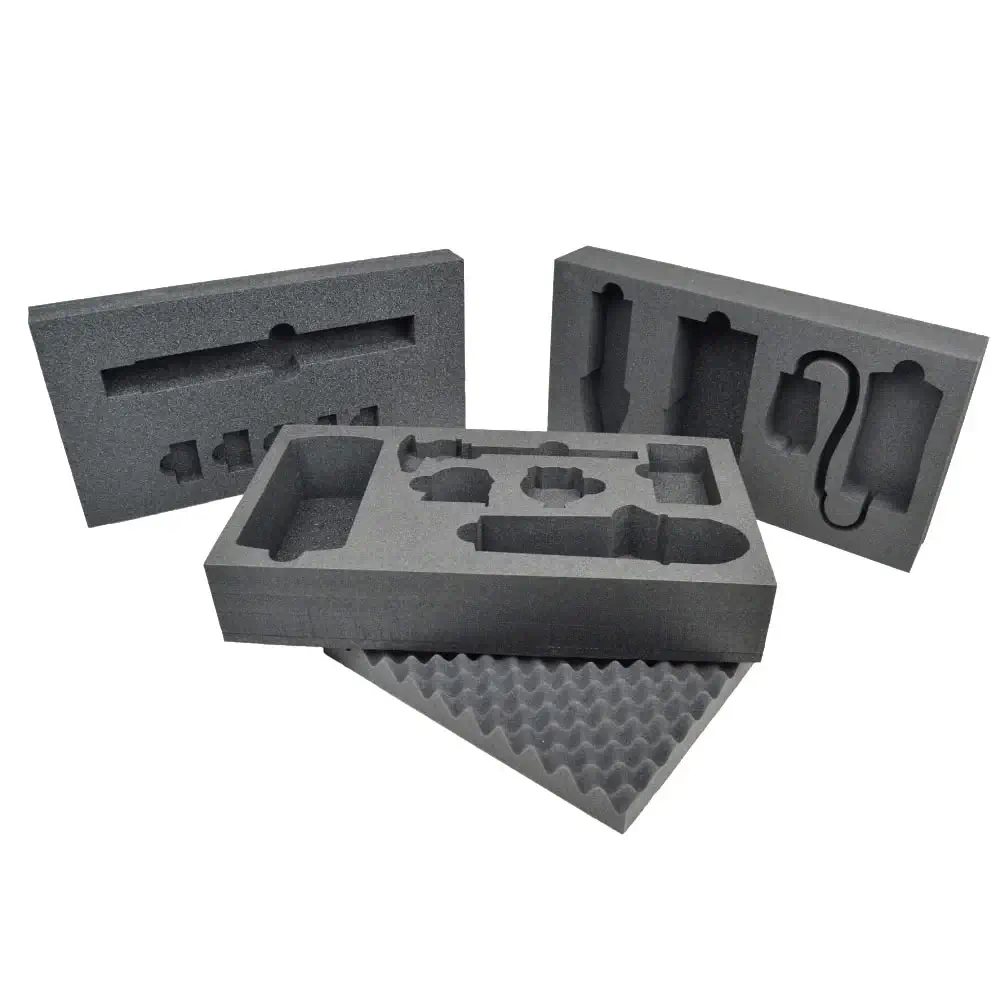

Packaging foam

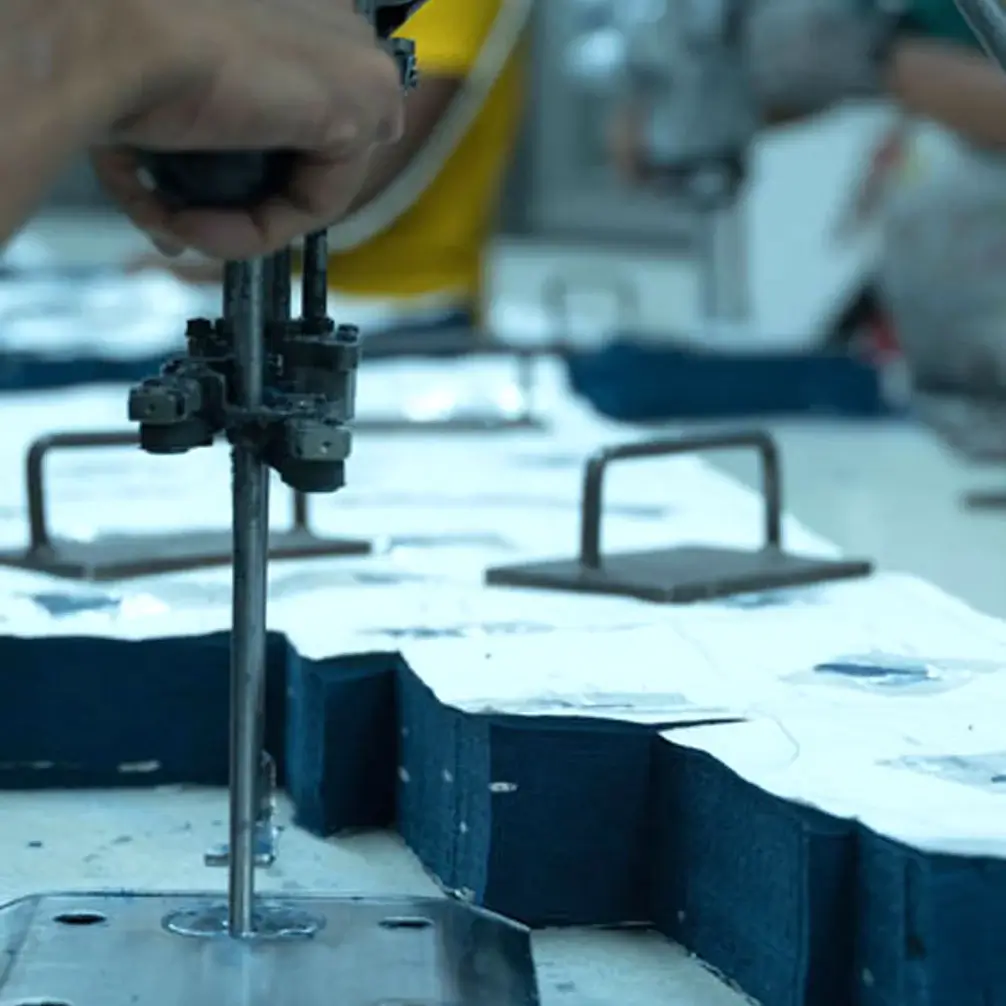

textile

Textile

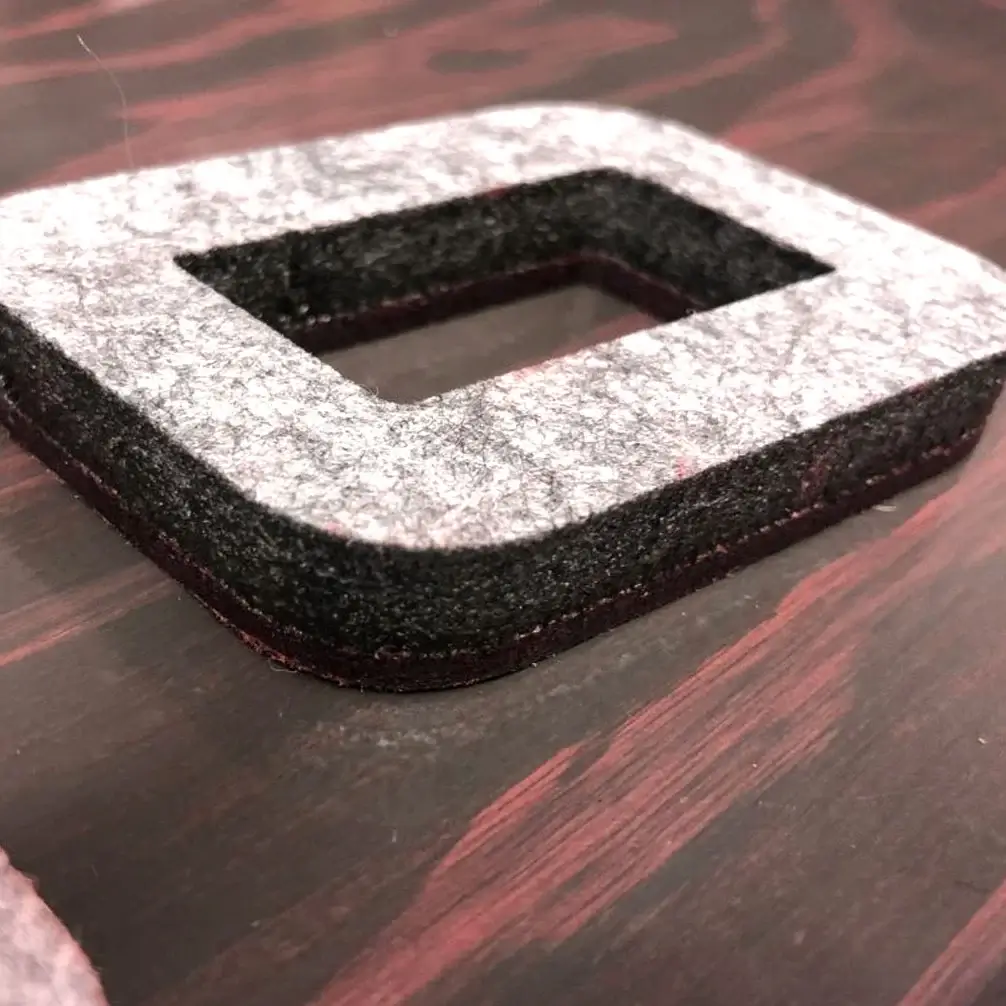

Felt

Felt

Exploring Real-World Success Stories

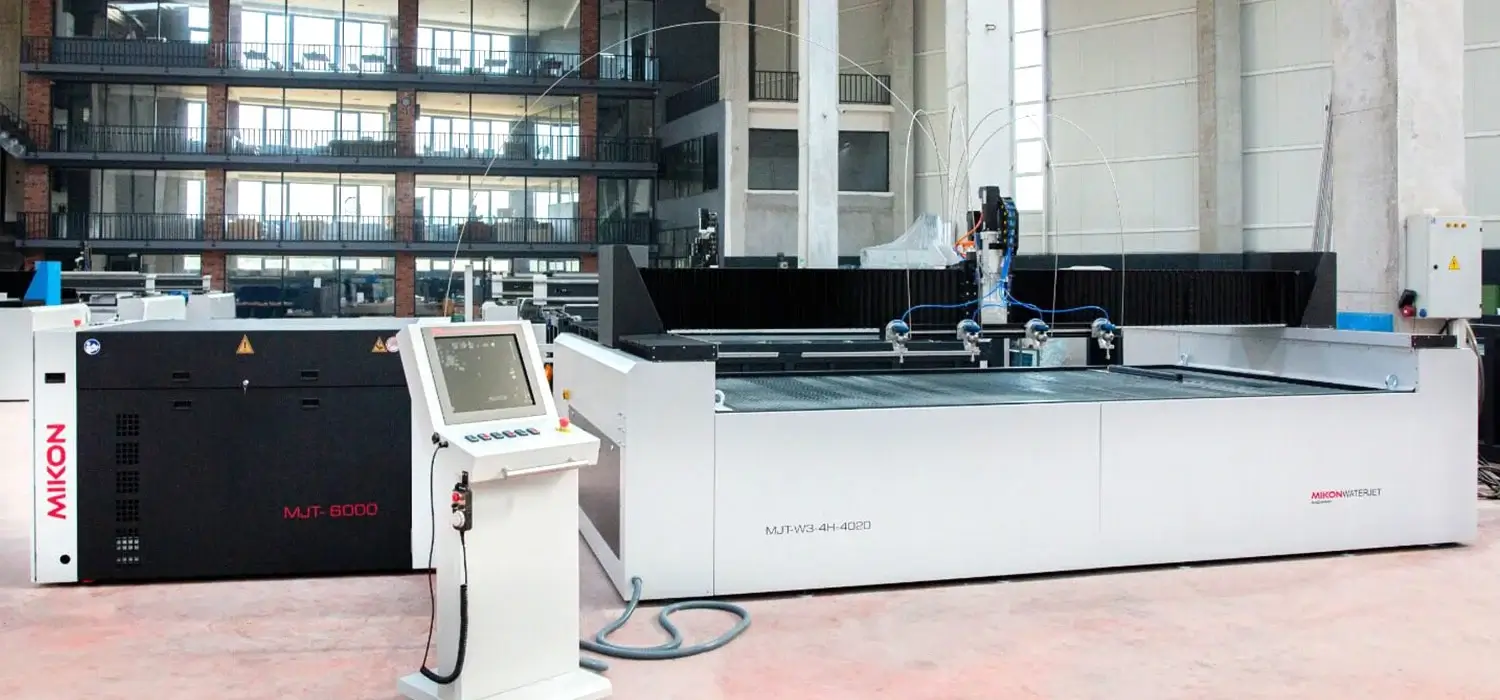

Installation of Mikon MJT Pure Water CNC waterjet

Inventure Engineering

Inventure Engineering provides top-tier custom fabrication and machining services. Equipped with advanced tools like the Mikon MJT-3 waterjet, the firm specializes in precision components for diverse industries, supported by robust in-house capabilities including CNC machining, welding, and prototyping.

The MJT Pure Water CNC Waterjet is constructed on the same sturdy platform as its 3-axis and 5-axis counterparts but operates without an abrasive delivery system. The tank is built of thick plate steel, with galvanized steel slats and slat supports to resist corrosion. Thick, heavy duty bellows keep out water and  and protect the automatically lubricated helical rack and pinion motion system. Bosh Rexroth Intensifier technology and Bosch Controller provide a globally recognized platform designed for heavy industrial use. Pure Water cutting is a great option for foam, some forms of gasket making, insulation, fabrics, and food items.

3116-waterjet-layout

Download Your Machine Layout Now

Get a detailed look at the MJT Series Pure Water CNC Waterjet with our downloadable machine layout. Easy and quick, it’s your first step to seamless integration!

MJT-Series-Pure-Water-CNC-waterjet

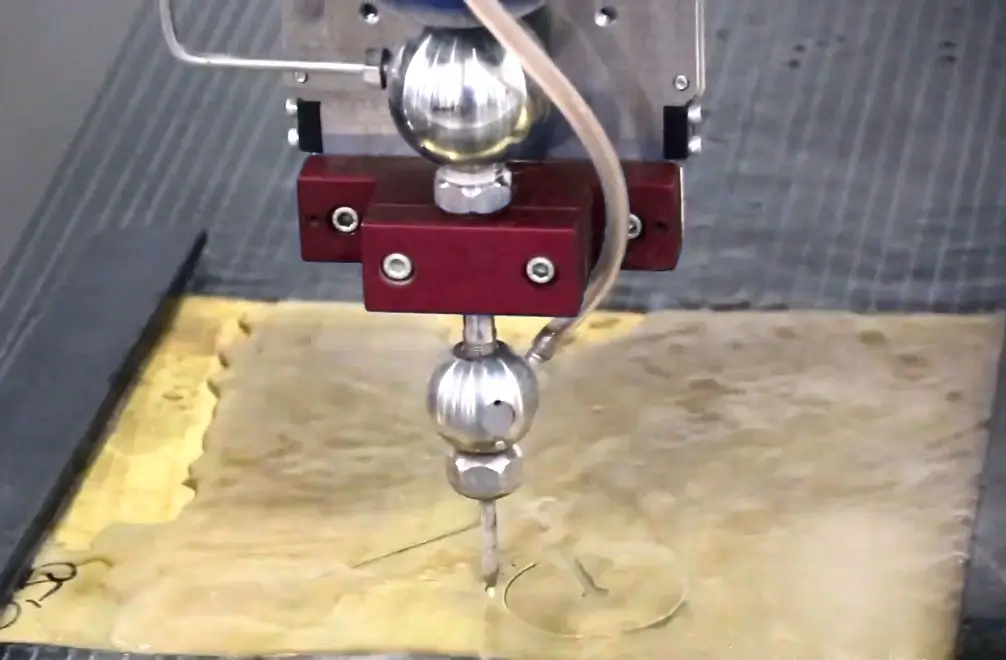

MJT-Series-3-axis-Waterjet-
