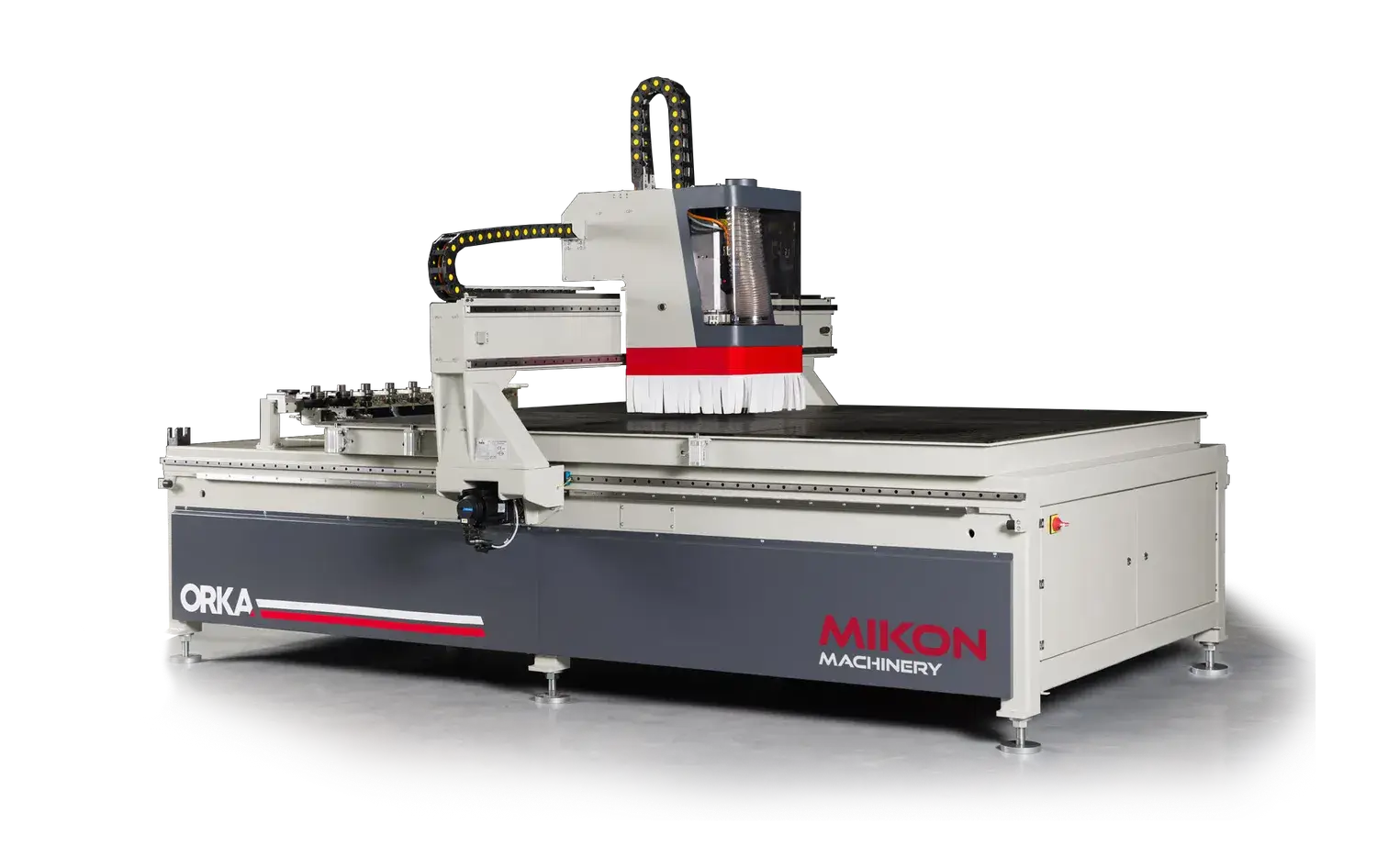

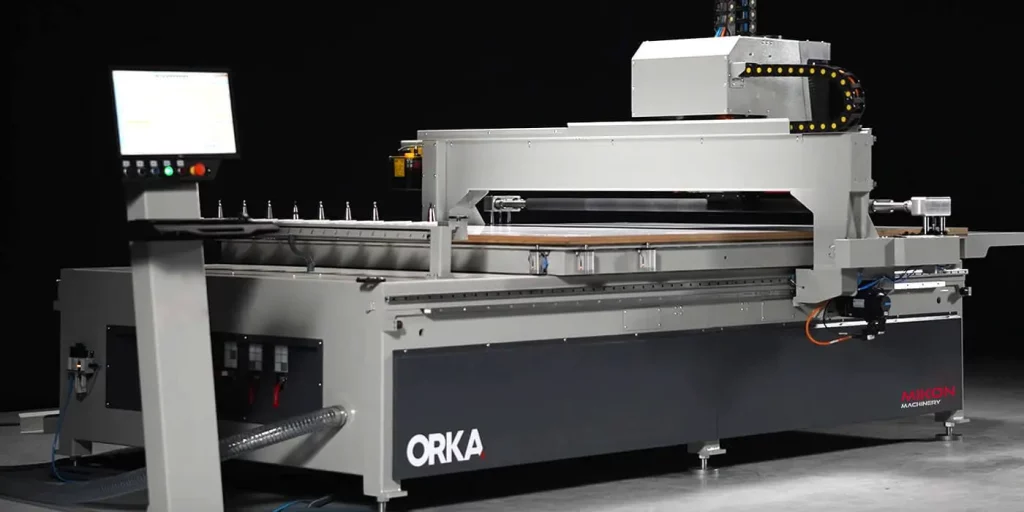

Mikon Orka CNC router

A Cost-Effective, Feature-Rich CNC Router for Furniture and Cabinetry

The Orka CNC router features several options offered by European builders to help increase productivity. Built to focus on Furniture, Door and Cabinet making industries, the Orka is a surprisingly affordable, yet feature rich production machine. A full PC workstation, automatic vacuum zones and pop up pins controlled by the CNC program, anti collision sensors, and available aggregate tooling for horizontal cutting are just some of the great options available with the Orka. We invite you to compare you to compare features and pricing to similar machines from Germany and Italy, as we are confident that the value proposition from Mikon Orka is hard to beat!

Standard Specifications

5’ x 10’ and 7’ x12’ work envelope available
11.5 HP HSK63 spindle 24,000 RPM

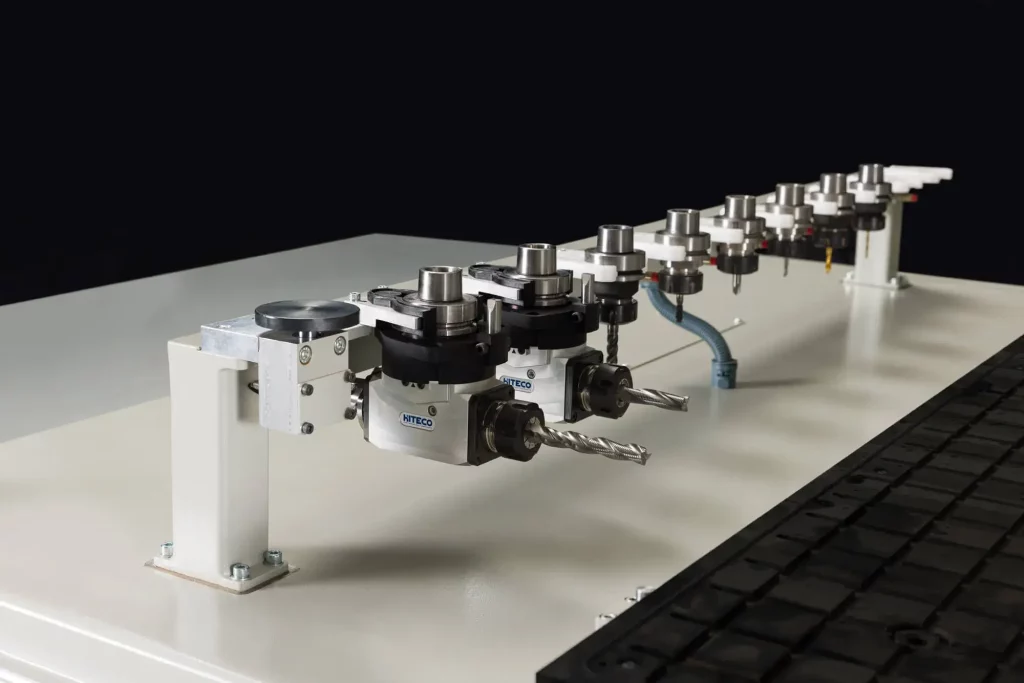

Automatic Tool changer with 8-10 stations
Tool collision sensor in tool changer
Pressurized automatic lubrication

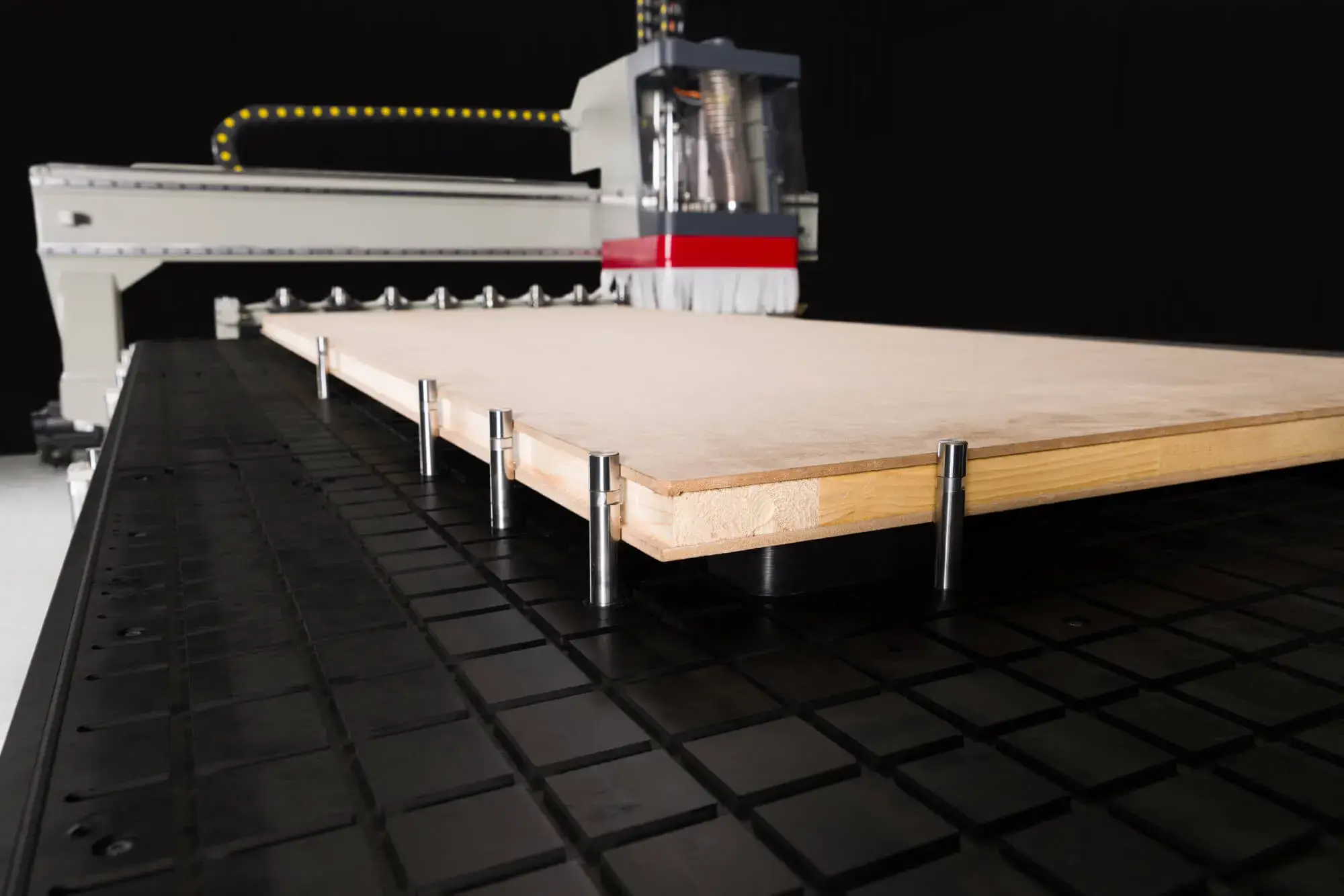

Automatic pop up pins ( can be activated by program)
Automatic table vacuum (can be activated by program)
Rigid, all steel frame and table with 25mm linear guides
Annual AlphaCam CAD/CAM license (permanent license available)
25mm Phenolic table with vacuum zone channel grid

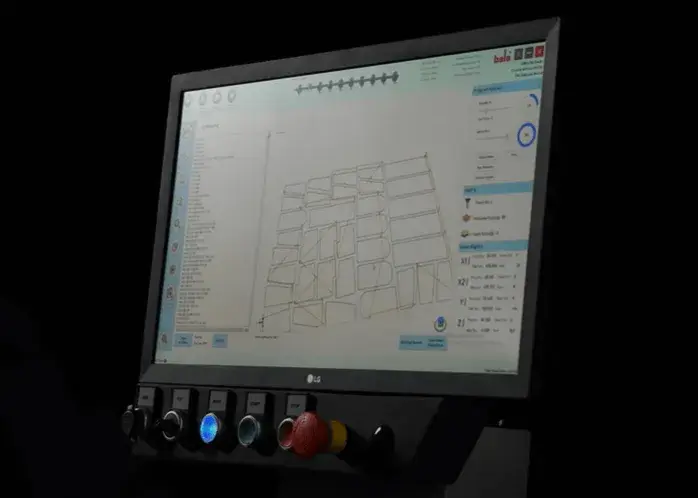

Remote assist and updates with WiFi enabled PC Controller
Automatic Tool Length Measurement probe

Options

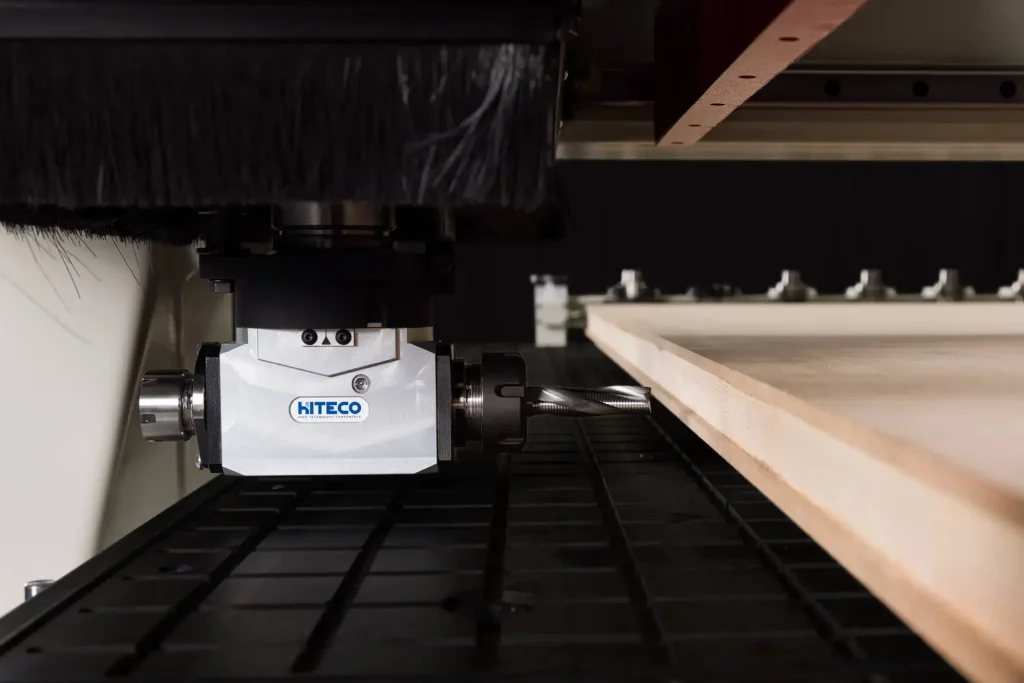

Available with horizontal aggregate tooling
Additional pop up pins and riser blocks inside work area
5×5 Gang Drill for shelf pins, 32mm spacing
Pressure Rollers for small parts or multiple sheet machining
Liquid cooled spindle

Table sizes

Model	Inches	Metric
Orka 1632	63” x 126”	1600mm x 3200mm
Orka 2137	84” x 145”	2140mm x 3700mm
Orka 2142	84” x 165”	2140mm x 4200 mm

Other sizes available

Software

Mikon Orka is supplied with a 12 month license of AlphaCam software. Customers are also welcome to use other CAM systems if they prefer.

Versatile Material Cutting

This router is expertly tailored to handle a wide array of materials, essential in today’s dynamic manufacturing landscape. It skillfully cuts Melamine, a favorite in high-wear surfaces like countertops and cabinets, ensuring a smooth, durable finish. The router’s prowess with Plywood enables it to tackle everything from structural applications to intricate design projects. In working with MDF, the Orka CNC Router achieves precise, clean cuts, perfect for detailed and custom furniture making. Its ability to sculpt Solid Wood is equally impressive, allowing for the creation of robust furniture pieces and intricate wooden decor. This adaptability in cutting various materials makes the Orka CNC Router a key tool for businesses in furniture making, cabinetry, and beyond.

MDF

Plywood

Melamine

Solid Wood

Industry Segments that use Mikon Orka CNC Router

Renowned for its versatility and precision, the Mikon Orka CNC Router is an essential tool in various industry segments. In Furniture Building, it enables the creation of intricate and durable pieces. Its efficiency in Plastic or Acrylic Machining ensures precise and smooth finishes, vital for quality products. In the realms of Woodworking or Millwork, the Mikon Orka’s capability to execute detailed cuts and carvings is invaluable. These industries depend on the Mikon Orka for its consistent performance and adaptability across diverse materials and complex projects.

Furniture Building

Cabinetry

Millwork

Download Your Machine Layout Now

Get a detailed look at the Mikon Orka CNC Router with our downloadable machine layout. Easy and quick, it’s your first step to seamless integration!

Reliable Coverage with Our Warranty Protection for Parts and Labour
