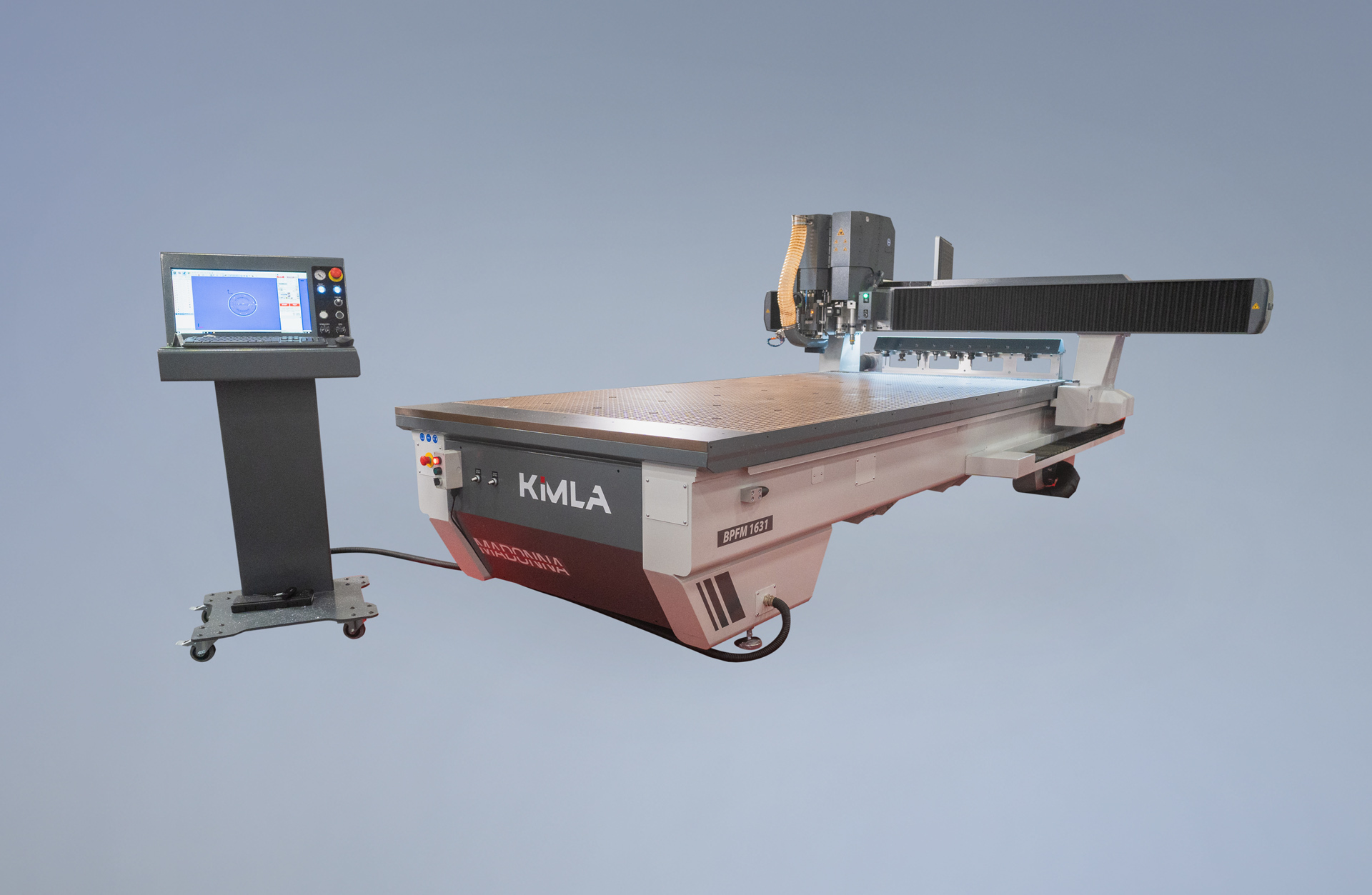

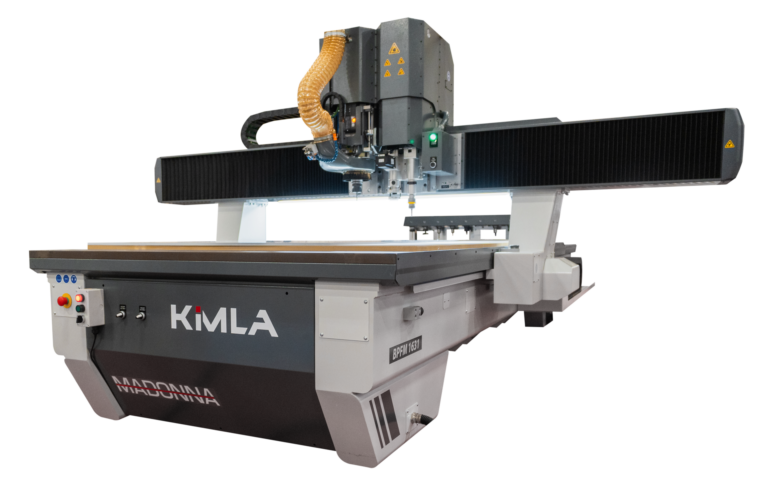

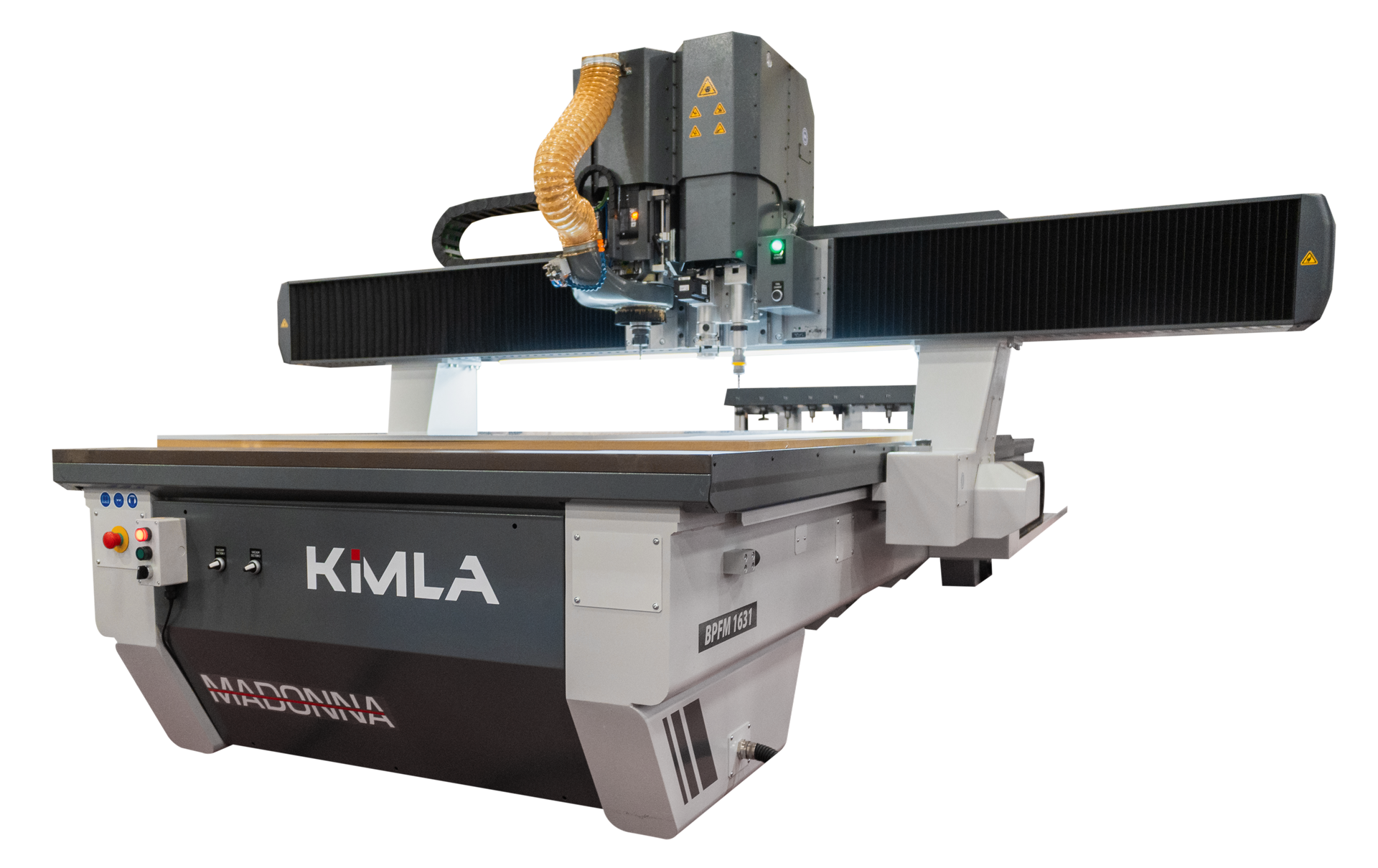

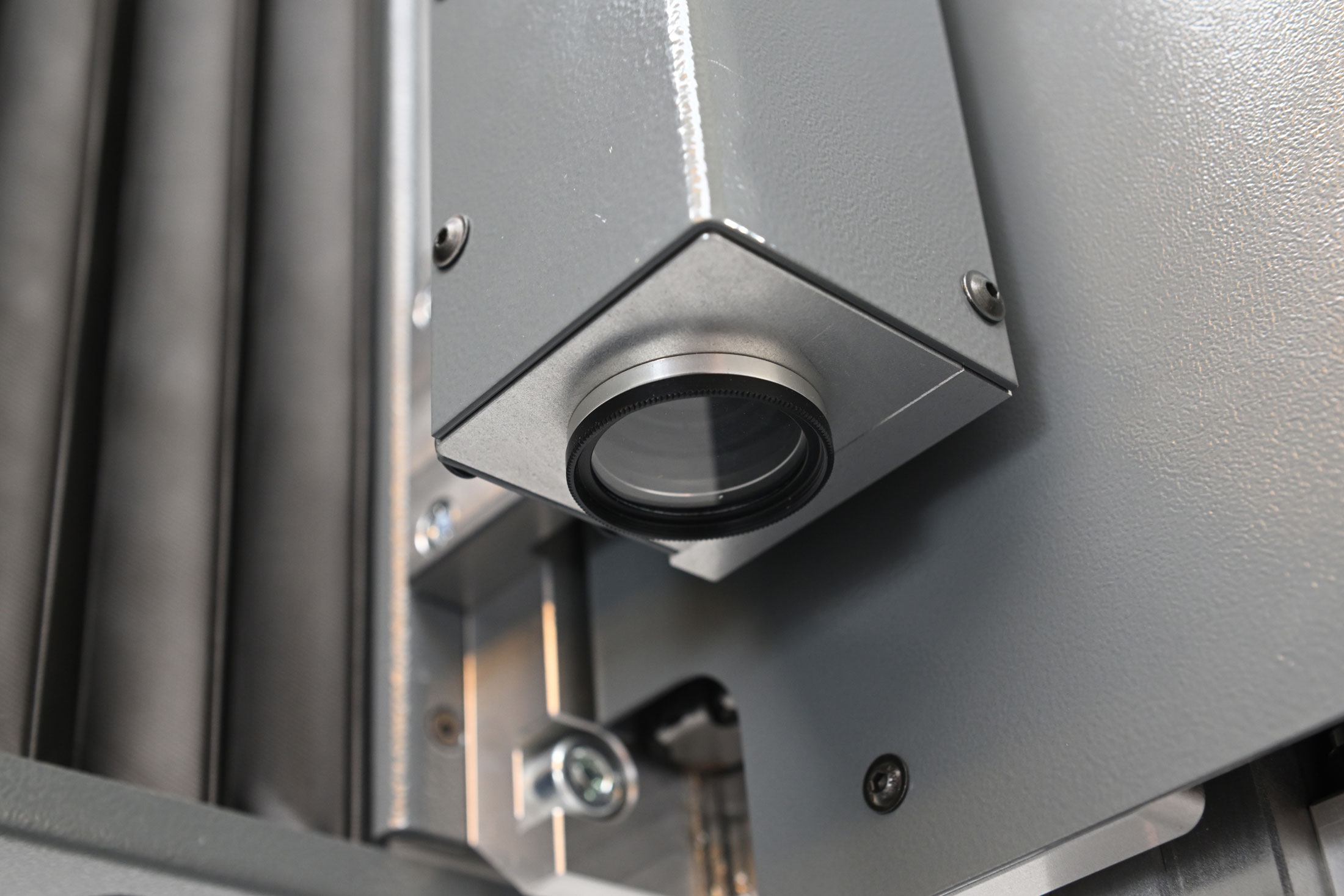

The Kimla Madonna is Kimla’s most compact CNC router, sized for shops where floor space is limited. It runs a 13 HP (24,000 RPM) or 10 HP (40,000 RPM) spindle with an automatic linear tool changer, and an optional dual-knife system and vision camera let the same machine handle digital knife cutting. The Madonna is designed and assembled by Kimla in Poland and sold and supported in Canada by Mikon Machinery.
The Madonna runs an integrated, PC-based Kimla CNC controller with Kimla’s proprietary CAM software. Kimla’s Dynamic Analysis of Vectors control looks ahead across consecutive tool-path segments and raises speed through the transitions where limits allow, so the machine holds a higher average feed rate on complex paths instead of slowing at every short segment. If your shop already programs in another CAD/CAM package, ask a Mikon specialist about post-processor support before you order.
The Madonna is set up for wood and sheet goods, plastics, non-ferrous metals such as aluminum, and foam. With the dual-knife option it also cuts rubber, gasket materials and technical textiles, so one compact machine can cover both routing and digital cutting work.
MDF
Plywood
Plastics
Foam
Aluminum
Kimla positions the Madonna for woodworking, sign making, packaging and plastics fabrication. The laser pointer setup tool, touch probe and linear tool changer are aimed at shops that run many short jobs and change setups often.
Sign Manufacturing
Plastics Fabrication
Woodworking / Millwork

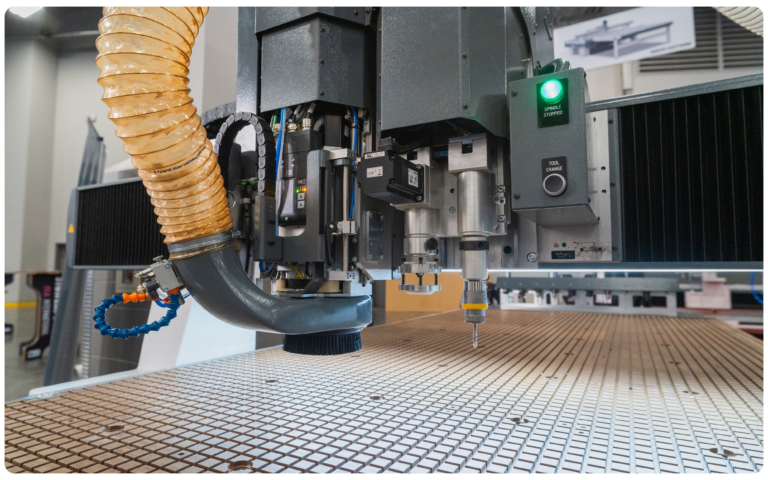

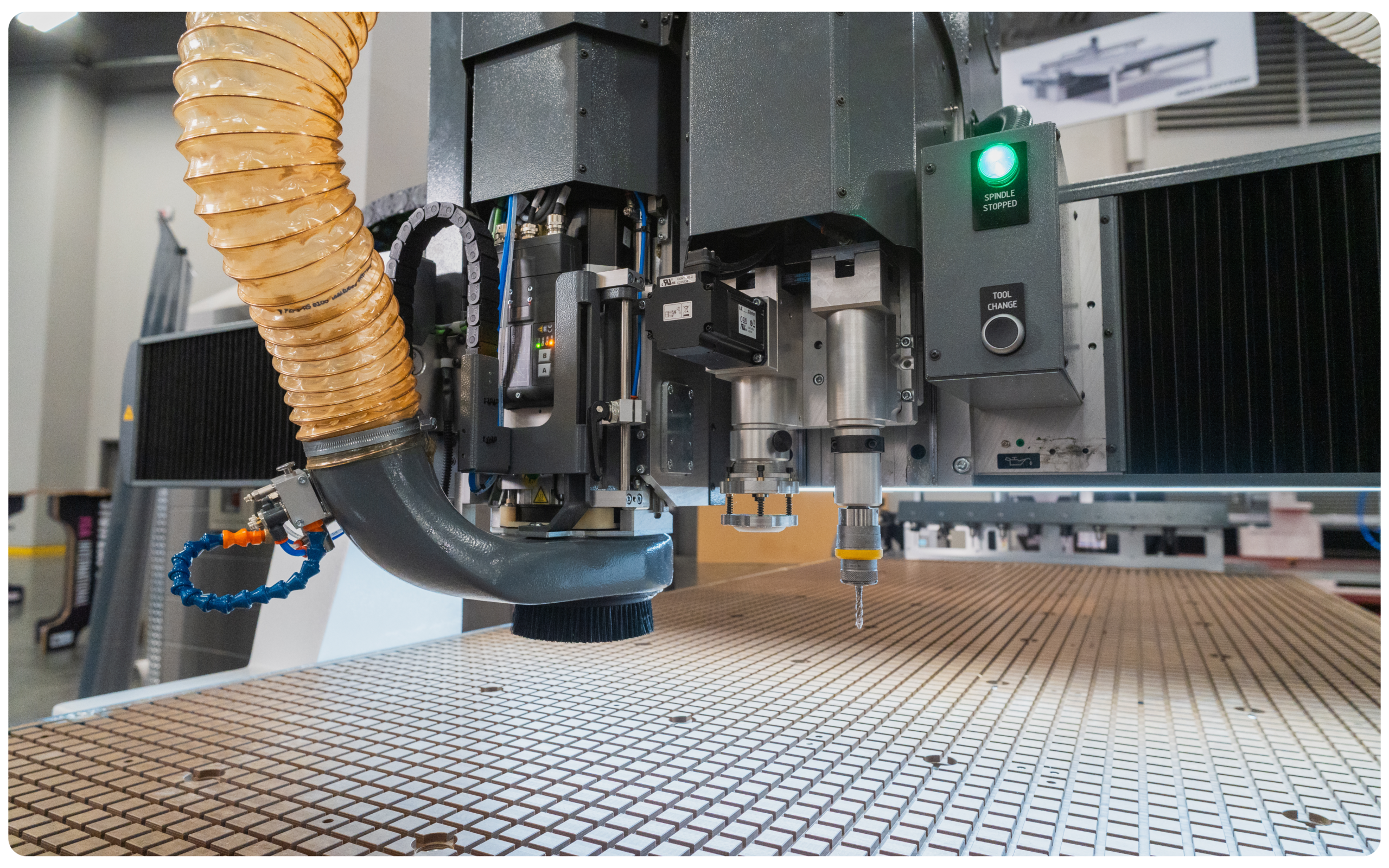

Helical rack-and-pinion drives on X and Y and a ball-screw Z deliver 3,500 IPM rapids with ±0.001″ repeatability, and the linear tool changer, laser pointer and touch probe keep changeovers short. Add the dual-knife system and the same machine cuts gaskets, foam and textiles. To discuss your application or request a quote, call (905) 738-7954 or fill out our consultation form.
Maximize the performance of your CNC router with high-quality tooling and consumables from Mikon Machinery. We offer a comprehensive range of CNC tools including router bits, knife blades, end mills, toolholders, collets, and vacuum pumps, all designed to deliver precision and durability in every project. Keep your operations running smoothly with dust collectors, coolant systems, and software solutions from industry-leading brands. Whether you’re cutting wood, aluminum, plastics, or composite materials, our selection ensures optimal results.
For hassle-free ordering, visit our online shop or simply send us a form for personalized assistance.
The Kimla Madonna is Kimla’s most compact CNC router. It is built for shops with limited floor space and can be configured for routing, knife cutting, or both.
Work area widths range from 63″ to 82″ (1,600–2,080 mm) and lengths from 122″ to 146″ (3,100–3,710 mm).
The Madonna is available with a 13 HP spindle at 24,000 RPM or a 10 HP spindle at 40,000 RPM, both with an automatic linear tool changer.
Yes. An optional dual-knife system and vision camera let the Madonna cut rubber, gaskets, foam and technical textiles in addition to routing wood, plastics and aluminum.
The Madonna has a rapid traverse of up to 3,500 IPM (89 m/min) and repeatability of ±0.001″ (±0.025 mm), using helical rack-and-pinion drives on X and Y and a ball screw on Z.
Kimla machines are designed and assembled in Poland. Mikon Machinery in Vaughan, Ontario sells and supports the Kimla Madonna in Canada. Call (905) 738-7954 for pricing.
The Madonna is Kimla’s compact router, with work areas up to 82″ x 146″ and spindles up to 13 HP. The Regency is the heavy-duty model, with tables up to 10 x 40 ft, spindles up to 26 HP and optional MagLev linear drives.
Pricing depends on work area, spindle, drive system and options. Call Mikon Machinery at (905) 738-7954 or request a quote for a price on the configuration you need.
Tell us what you cut and a CNC specialist (not a call center) will reply personally with pricing and straight advice for your application.
Financing available. Installed, trained and supported across Canada. 50 years in business.
